Lutron MS-OPS5MH-WH-C Maestro PIR Occupancy Sensor Switch, 5A Rating, 900 sq ft Coverage
- MPN: MS-OPS5MH-WH-C
- UPC: 027557983969
- PPN: LUT-MS-OPS5MH-WH-C
- UNSPSC: 39122236
CAD
$44.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

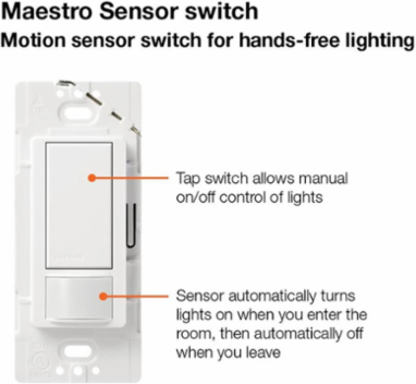

The Lutron Maestro Motion Sensor Switch features Lutron’s advanced motion sensing technology to automatically turn the lights on and off, or manually toggle the lights with the tap switch. The Motion Sensor Switch is rated up to 5A for any lighting type, 3A fan or 3A for combined light/fan. Install in a single pole, 3-way with one existing switch, or with Maestro companion switches (MA-AS/MSC-AS) to switch from up to 9 locations. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage). Equipped with smart ambient light detection (ALD), you can customize your sensor to detect daylight, so lights don't turn on when enough natural light is present in the room. Unlike other manufacturers, Lutron sensors use Cross Correlation Technology (XCT) to also detect fine motion, such as typing at a desk or reading a book – ensuring lights won’t turn off inadvertently when you’re still in the room. Lutron sensors also have an adjustable timeout (1, 5, 15 or 30 minutes) to control how long the lights stay on after leaving the room. Switch the sensor to vacancy mode to meet Title 24 requirements: lights only turn on with a manual press of the tap switch but automatically turn off if the sensor no longer detects motion. The sensitivity of the PIR sensor can also be changed so it only detects larger motion Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Combines a Maestro switch with a passive infrared occupancy sensor. Detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly. Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage. Can be set to auto-on/auto-off or manual-on/auto-off. Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment. Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan. Ground wire required.

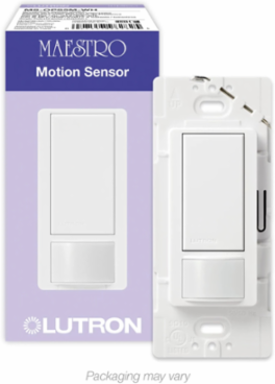

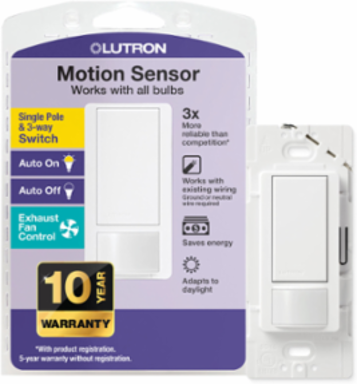

- Includes (1) Lutron Maestro 5A Motion Sensor Switch; Gloss Finish, Clamshell Packaging
- Rated to work with up to 5A lighting, 3A Fan or 3A combined Light/Fan; 120V
- Single Pole or Multi-Location with Lutron Maestro Companion Switch (MA-AS/MSC-AS); Compatible with one existing 3-way switch
- Wire-Lead installation; Ground or Neutral Required
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
- 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
- Smart Ambient Light Detection (ALD) can be programmed so lights stay off if enough natural light is present in the room
- Easy button programming to customize timeout, sensor mode, or sensitivity
- Complies with Title 20/24 Section 110.9 for “automatic shutoff”
- Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
- Combines a Maestro switch with a passive infrared occupancy sensor
- Detects the heat from occupants moving within an area to determine whether the space is occupied
- Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly
- Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view
- Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
- Can be set to auto-on/auto-off or manual-on/auto-off
- Adjustable timeout (1, 5, 15, or 30 minutes) and high/low sensitivity adjustment
- Occupancy sensing switch loads: incandescent, halogen, ELV, MLV, CFL, LED, magnetic fluorescent, electronic fluorescent, and fan
- Ground wire required
Documentation & Downloads
Specifications
Key Specifications
| Application | Lighting Control |
|---|---|
| Decorative Color | White |
| Enclosure | Plastic |
| Load | 5 A@120 VAC lights/3 A@120 VAC@ fan/3 A@120 VAC@light and fan |
| Operating Temperature, Minimum | 32 F |
| Sensing Range, Minimum | 400 |
| Supply Voltage | 120 |
| Mounting | Wallbox |
| Aesthetic Finish | Glossy |
| Operating Temperature | 32 to 104 F |
| Body | Plastic |
|---|---|
| Family Color | White |
| Environmental Conditions | 0 to 90% humidity, non-condensing. Indoor use only. |
| Operating Temperature, Maximum | 104 F |
| Sensing Range, Maximum | 900 |
| Sensor | Passive infrared motion detection with dependable Lutron XCT technology |
| Type | Occupancy sensor switch, multi-location/3-way/single-pole, clamshell packaging |
| Sensing Range | 900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage |
| Finish | Gloss |
