Leviton 15D21-UW 15 Series Cam-Type Male Plug, 150 Amp, 600 Volt, #8 - #2 AWG
Leviton 15D21-UW 15 Series Cam-Type Male Plug, 150 Amp, 600 Volt, #8 - #2 AWG
- MPN: 15D21-UW
- UPC: 078477708569
- PPN: LEV-15D21-UW
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$46.07/ EA
Description

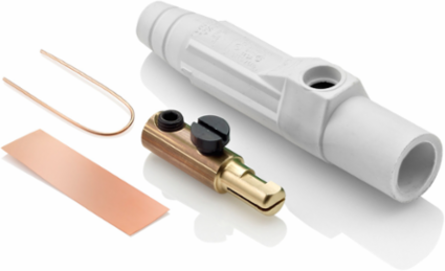

15 Series Taper Nose Cam-Type Male Plug, Contact & Insulator, Detachable, #8 - #2 AWG, Single Set Screw Termination, 150 Amp Max, 600VAC/DC, Type 3R When Mated, White
Features
- Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
- NEMA 3R rated for outdoor use when mated
- Color-coding provides fast and easy phase identification
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Specifications
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- CSA
- C22.2 No 1691
- Color
- White
- Max. Amperage
- 150 Amp
- UL
- 1691
Cable Range8-2 AWG
Connection TypeSingle Set Screw
Max. Voltage600 Volt
Warranty2-Year Limited
