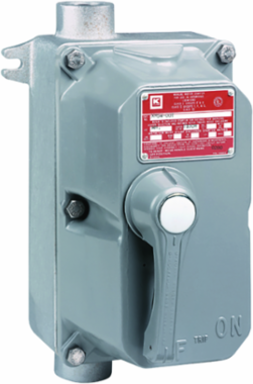

Killark XMSW-1BT Manual Motor Starter 1 NEMA Size 1, 2-Pole, 600V, Max 3 hp, Hazardous Rated
- MPN: XMSW-1BT
- UPC: 783936912561
- PPN: HBL-XMSW-1BT
CAD
$3947.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Manual Motor Starter - NEMA Size 1 - 2-Pole; 1Ø, Ac
Features
- Rectangular bolted cover design provides for attractive, compact, uniform installations.
- Enclosure and external handle are diecast copper-free (less than 0.4%) aluminum alloy.
- Cast “ON,” “OFF,” “TRIPPED” markings on cover align with external handle and provide clear indication of enclosed starter condition.
- External handle is a vault type with standard provisions for locking in the “OFF” position with up to three pad-locks.
- Provision for locking in “ON” position is available as factory modification (add suffix SU-40 to catalog number).
- Two cast 1” NPT conduit hubs with integral pipe stop, one top and one bottom, are standard on all assemblies.
- Killark's XMSW Series of Hazardous Location Manual Motor Starters provide non-reversing manual starting and stopping of motor loads. Rated for indoor and outdoor applications, the copper-free aluminum construction is ideal for harsh and hazardous environments. Note: Overload Heaters are required, but not included as standard, and need to be specified based on FLA (Full Load Amps) of motor.
Specifications
Key Specifications
- Country of Origin
- United States
- Horsepower - Maximum
- 3
- Voltage Rating
- 600 V
- Class Code
- D25
- Freight Class Code
- 06316011
- Image Actual Or Representative
- A
- Sub Class Code
- D25D253
- Series
- XMSW Series
- BOX SIZE
- (in)
- NAICS Code
- 3353146101
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Size1
ARRA CompliantContact Manufacturer
Description - InvoiceMANUAL MOTOR STARTER
Harmonization Code8536504000
MSDS FlagNo
UL File NumberE12379
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936912561
