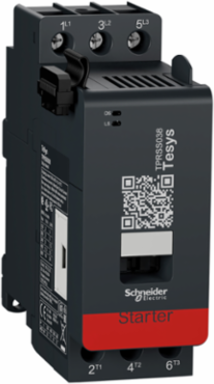

TeSys Island SIL Motor Starter 40A AC-1, 20hp, 18.5kW, 3 Poles

TeSys Island SIL Motor Starter 40A AC-1, 20hp, 18.5kW, 3 Poles - https://images.province-electric.com/SCH-TPRSS038/sil-motor-starter-tesys-medium-alt-gjhe.webp

Documentation & Downloads

Schneider Electric TPRSS038 TeSys Island SIL Motor Starter 40A AC-1, 20hp, 18.5kW, 3 Poles

MPN: TPRSS038
PPN: SCH-TPRSS038

$858.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys island direct SIL starter, 3 poles, 38A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 38A and motors up to 18,5kW@400V / 20hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 0.76-38A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: Brazil, France, United States

Depth115 mm

Complementary Attributes

Maximum Horse Power Rating: 10 hp at 240 V AC 60 Hz for 3 phase motors2 hp at 120 V AC 60 Hz for 1 phase motors5 hp at 240 V AC 60 Hz for 1 phase motors, 10 hp at 208 V AC 60 Hz for 3 phase motors20 hp at 480 V AC 60 Hz for 3 phase motors25 hp at 600 V AC 60 Hz for 3 phase motors

Maximum Operating Rate: 3600 cyc/mn AC-3

Irms Rated Making Capacity550 A at 440 V conforming to IEC 60947

Rated Breaking Capacity550 A at 440 V conforming to IEC 60947

Important Information Attributes

Persona Type Ids: EU, LC, OM, OM8, PB

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Current Consumption: 160 mA contactor sealed, 160 mA contactor closing

Electromagnetic Compatibility: electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2, radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5, surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5, conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6

Local Signalling: 1 LED (green/red) for DS (device status), 1 LED (green/red) for LS (load status)

Motor Power Kw: 9 kW at 230 V 50 Hz (AC-3)18.5 kW at 380...415 V 50 Hz (AC-3), 18.5 kW at 440 V 50 Hz (AC-3), 18.5 kW at 500 V 50 Hz (AC-3), 18.5 kW at 690 V 50 Hz (AC-3)

Power Dissipation Per Pole: 2.9 W AC-3 - Ith 38 A, 3.2 W AC-1 - Ith 40 A

Safety Function: safe stop: category 0 conforming to IEC 60204-1 when associated with a TPRSM module, safe stop: category 1 conforming to IEC 60204-1 when associated with a TPRSM module

Tightening Torque: 2.5-2.5 N.m flat Ø 6 mm, 2.5-2.5 N.m Philips No 3

Certificate Agency: CSA, EAC, UL, CCC

[Ui] Rated Insulation Voltage: 690 V IEC 60947-4-1600 V UL 60947-4-1, 600 V CSA C22.2 No 60947-4-1

Local Data Status: Publishable

Return Indicator: N

Stock Policy: 2

Serviceability: No

Weee Applicability: Finished product

Weee Product Category: 5

Eoli Availability Display: Yes

Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold

Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold

Rohs Eur Status: Compliant By Exemption

Rohs Eur Full Compliance Status: Compliant By Exemption

China Rohs Label: 7

Without Single Use Plastic: Yes

Tier Id: 2

Function Option Id: STANDARD

Product Kit Identifier: N

Device Short Name: TPRSS

Fire Resistance: 960 °C UL 94850 °C IEC 60695-2-1650 °C IEC 60695-2-12

Motor Starter Type: direct on line

Number Of Poles: 3P 3 NO

Power Dissipation In W: 11.8 W at Ie AC-3

Product Name: TeSys island

Protective Treatment: TC

Reset: remotely or automatically

Safety Reliability Level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Sustainable Packaging: Yes

Thermal Protection Adjustment Range: 0.76-38 A

Weee Label: The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Height Nominal: 121 mm

[Icw] Rated Short-time Withstand Current: 430 A 40 °C - 1 s310 A 40 °C - 10 s150 A 40 °C - 1 min60 A 40 °C - 10 min

[Ith] Conventional Free Air Thermal Current: 40 A (at 50 °C)

[Uimp] Rated Impulse Withstand Voltage: 6 kV IEC 60947-1

Nbr. Of Units In Pkg.: 1

Take-back: No

Customs Code: 8536504000

Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder

Market SegmentationCommercial, Industrial

Electrical Durability1.4 Mcycles 38 A AC-3 440 V, 2 Mcycles 40 A AC-1 440 V

Function Availableupstream voltage presence detection, electrical line and load protection, power and energy monitoring when connected with TPRVM voltage module, safe stop function available when connected with a TPRSM module

Metering Typetime device ON, time device switch ON, number of faults, number of switching cycles, number of device power cycles, average current Iavg, average voltage Vavg, max current Imax, max voltage Vmaxactive and reactive power with voltage module, active and reactive energy with voltage module, true power factor with voltage module

Operating Time< 100 ms closing, < 100 ms closing, < 30 ms opening, < 30 ms opening< 100 ms closing, < 100 ms closing, < 30 ms opening, < 30 ms opening

Protection Typethermal overload protection, motor overheat, overcurrent, undercurrent, jam, long start, stall, rapid cycle lockout, rapid restart lockout, phase sequence, phase reversal, phase loss, phase unbalance, ground current

Safety LevelSIL 2 conforming to IEC 61508 in single channel system architectureSILCL 2 conforming to IEC 62061 in single channel system architecture, PL = d category 2 conforming to ISO 13849-1 in single channel system architecture

Utilisation CategoryAC-1, AC-2, AC-3, AC-4, AC-3e

[Ue] Rated Operational Voltage<= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 690 V AC 47...63 Hz for overvoltage cat. II, <= 690 V AC 47...63 Hz for overvoltage cat. II, <= 690 V AC 47...63 Hz for overvoltage cat. II, <= 690 V AC 47...63 Hz for overvoltage cat. II<= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 480 V AC 47...63 Hz for overvoltage cat. III, <= 690 V AC 47...63 Hz for overvoltage cat. II, <= 690 V AC 47...63 Hz for overvoltage cat. II

Connections - Terminalsscrew-clamp terminals 2 2.5-10 mm² 14 AWG...8 AWG)flexible without cable endscrew-clamp terminals 2 1.5-6 mm² 16 AWG...10 AWG)flexible with cable endscrew-clamp terminals 1 1.5-10 mm² 16 AWG...8 AWG)rigid, screw-clamp terminals 2 1.5-10 mm² 16 AWG...8 AWG)rigidscrew-clamp terminals 1 2.5-10 mm² 14 AWG...8 AWG)flexible without cable endscrew-clamp terminals 1 1.5-10 mm² 16 AWG...10 AWG)flexible with cable end

Local Publishable Date2026-07-15

Stocking FlagY

Device TypeRelay, Control & Measurement - measuring, monitoring device

TraceabilityNo

Weee ScopeIn

Scope PerimeterAt least in Europe

End Of Life Doc RefENVEOLI1904009EN

Reach Full Compliance Status IdCONTAINS_SVHC

Rohs Eur In ScopeYes

Rohs Eur Conformity Date1911

China Rohs In ScopeYes

With Recycled CardboardYes

Product Contributes To Saved And Avoided EmissionsNo

Tier2

Function OptionStandard

Average Impedance2 mOhm - Ith 40 A 50 Hz

Energy Efficiency OptimizedFalse

Mechanical Durability30 Mcycles

Mounting Modehorizontal and vertical 35 mm symmetrical DIN rail)

Overvoltage CategoryIII for Ue <= 480 VII for Ue <= 690 V

Product AvailabilityNon-Stock - Not normally stocked in distribution facility

Product Or Component TypeSIL motor starter

RangeTeSys

ReturnabilityNo

Shock Resistance15 gn 11 ms) IEC 60068-2-27

Thermal Overload Classclass 5…30

Vibration Resistance1.5 mm peak to peak 3-13 Hz) IEC 60068-2-61 gn 13-200 Hz) IEC 60068-2-6

Pep CodeENVPEP1904009EN

Width Nominal45 mm

[Ie] Rated Operational Current38 A (at <50 °C) at <= 440 V AC-340 A (at <50 °C) at <= 440 V AC-1

[Uc] Control Circuit Voltage24 V DC supplied by the bus coupler

Halogen-free StatusHalogen free plastic parts product

Package Weight(Lbs)772 g

Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation: -10-50 °C without derating, -10-50 °C without derating-10-50 °C without derating, -10-50 °C without derating50-60 °C with current derating
