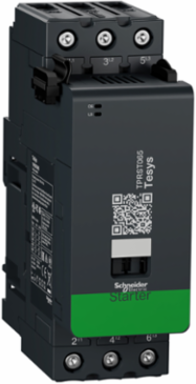

Schneider Electric TPRST065 TeSys Island Motor Starter 80A AC-1, 65A AC-3, DOL Type
Schneider Electric TPRST065 TeSys Island Motor Starter 80A AC-1, 65A AC-3, DOL Type
- MPN: TPRST065
- PPN: SCH-TPRST065
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1129.31/ EA
Description
TeSys island direct starter, 3 poles, 65A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 65A and motors up to 30kW@400V / 40hp@480V. It provides motor protection functions including thermal overload (setting 3.35-65A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Ambient Air Temperature For Operation
- -10-50 °C without derating || 50-60 °C with current derating
- Vibration Resistance
- 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 || 1 gn 13-200 Hz) IEC 60068-2-6
- Pollution Degree
- 2
- Protective Treatment
- TC
- Ip Degree Of Protection
- IP20
- Fire Resistance
- 960 °C UL 94 || 850 °C IEC 60695-2-1 || 650 °C IEC 60695-2-12
Shock Resistance15 gn 11 ms) IEC 60068-2-27
Electromagnetic Compatibilityelectrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4 || surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 || surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5 || conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
Ambient Air Temperature For Storage-25-70 °C
Relative Humidity5-95 %
Operating Altitude0...2000 m without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1904009EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1904009EN
Halogen Content PerformanceHalogen free plastic parts product
Complementary
- Mounting Mode
- horizontal and vertical 35 mm symmetrical DIN rail)
- Product Certifications
- CSA || UL || EAC || CCC
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
- Net Weight
- 1.248 kg
- Maximum Operating Rate
- 3600 cyc/mn AC-3
- Electrical Durability
- 1.4 Mcycles 65 A AC-3 440 V || 0.5 Mcycles 80 A AC-1 440 V
- Operating Time
- < 80 ms closing || < 80 ms opening
- Depth
- 125 mm
- Protection Type
- thermal overload protection || motor overheat || overcurrent || undercurrent || jam || long start || stall || rapid cycle lockout || phase sequence || rapid restart lockout || phase reversal || phase loss || phase unbalance || ground current
Height167 mm
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Connections - TerminalsEverLink BTR screw connectors 1 1-35 mm² AWG 16...AWG 2)rigid || EverLink BTR screw connectors 2 1-25 mm² AWG 16...AWG 4)rigid || EverLink BTR screw connectors 1 1-35 mm² AWG 16...AWG 2)flexible without cable end || EverLink BTR screw connectors 2 1-25 mm² AWG 16...AWG 4)flexible without cable end || EverLink BTR screw connectors 1 1-35 mm² AWG 16...AWG 2)flexible with cable end || EverLink BTR screw connectors 2 1-25 mm² AWG 16...AWG 4)flexible with cable end
Metering Typetime device ON || time device switch ON || number of faults || number of switching cycles || number of device power cycles || average current Iavg || average voltage Vavg || max current Imax || max voltage Vmax || active and reactive power with voltage module || active and reactive energy with voltage module || true power factor with voltage module
Local SignallingDS (device status) 1 LED green/red) || LS (load status) 1 LED green/red)
Mechanical Durability6 Mcycles
Width55 mm
Tightening Torque5-5 N.m 1-25 mm² hexagonal 4 mm || 8-8 N.m 25-35 mm² hexagonal 4 mm
Specifications
- Current Consumption
- 80 mA contactor sealed || 500 mA contactor closing
- Power Dissipation Per Pole
- 6.3 W AC-3 - Ith 65 A || 9.6 W AC-1 - Ith 80 A
- Reset
- remotely or automatically
- [Uc] Control Circuit Voltage
- 24 V DC supplied by the bus coupler
- Product Or Component Type
- motor starter
- Product Name
- TeSys island
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Device Presentation
- direct starter connected to an automation controller through a bus coupler || operational only when connected to a bus coupler
- Utilisation Category
- AC-1 || AC-2 || AC-3 || AC-4
- [Ie] Rated Operational Current
- 65 A (at <50 °C) at <= 440 V AC-3 || 80 A (at <50 °C) at <= 440 V AC-1
- Thermal Protection Adjustment Range
- 3.35-65 A
- [Ue] Rated Operational Voltage
- <= 690 V AC 47...63 Hz
- Motor Power Kw
- 18.5 kW at 230 V 50 Hz (AC-3) || 30 kW at 380...415 V 50 Hz (AC-3) || 30 kW at 440 V 50 Hz (AC-3) || 37 kW at 500 V 50 Hz (AC-3) || 37 kW at 690 V 50 Hz (AC-3)
- Device Short Name
- TPRST
- [Icw] Rated Short-Time Withstand Current
- 900 A 40 °C - 1 s || 520 A 40 °C - 10 s || 260 A 40 °C - 1 min || 110 A 40 °C - 10 min
Power Dissipation In W20.8 W at Ie AC-3
Average Impedance1.5 mOhm - Ith 80 A 50 Hz
[Ith] Conventional Free Air Thermal Current80 A (at 50 °C)
Rated Breaking Capacity1000 A at 440 V conforming to IEC 60947
Irms Rated Making Capacity1000 A at 440 V conforming to IEC 60947
Thermal Overload Classclass 5…30
RangeTeSys
Motor Starter Typedirect on line
Function Availableupstream voltage presence detection || electrical line and load protection || power and energy monitoring when connected with TPRVM voltage module
Overvoltage CategoryIII
Product CompatibilityTPRBC bus coupler || TPRVM voltage interface module
Motor Power Hp5 hp at 120 V AC 60 Hz for 1 phase motors || 10 hp at 240 V AC 60 Hz for 1 phase motors || 20 hp at 208 V AC 60 Hz for 3 phases motors || 20 hp at 240 V AC 60 Hz for 3 phases motors || 40 hp at 480 V AC 60 Hz for 3 phases motors || 50 hp at 600 V AC 60 Hz for 3 phases motors
[Ui] Rated Insulation Voltage690 V IEC 60947-4-1 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1
Poles Description3P 3 NO
