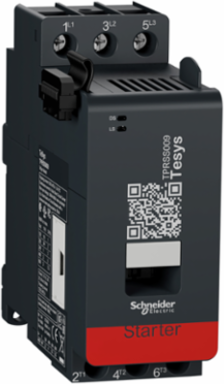

Schneider Electric TPRSS009 TeSys Island SIL Motor Starter, 9A AC-3, 15A AC-1, 4kW, 5hp
- MPN: TPRSS009
- PPN: SCH-TPRSS009
CAD
$487.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys island direct SIL starter, 3 poles, 9A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 9A and motors up to 4kW@400V / 5hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 0.18-9A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Current Consumption
- 160 mA contactor sealed || 160 mA contactor closing
- Power Dissipation Per Pole
- 0.2 W AC-3 - Ith 9 A || 0.56 W AC-1 - Ith 15 A
- Reset
- remotely or automatically
- [Uc] Control Circuit Voltage
- 24 V DC supplied by the bus coupler
- Product Or Component Type
- SIL motor starter
- Product Name
- TeSys island
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Device Presentation
- direct starter connected to an automation controller through a bus coupler || operational only when connected to a bus coupler
- Utilisation Category
- AC-1 || AC-2 || AC-3 || AC-4
- [Ie] Rated Operational Current
- 9 A (at <50 °C) at <= 440 V AC-3 || 15 A (at <50 °C) at <= 440 V AC-1
- Thermal Protection Adjustment Range
- 0.18-9 A
- [Ue] Rated Operational Voltage
- <= 690 V AC 47...63 Hz
- Motor Power Kw
- 2.2 kW at 230 V 50 Hz (AC-3) || 4 kW at 380...415 V 50 Hz (AC-3) || 4 kW at 440 V 50 Hz (AC-3) || 5.5 kW at 500 V 50 Hz (AC-3) || 5.5 kW at 690 V 50 Hz (AC-3)
- Device Short Name
- TPRSS
- [Icw] Rated Short-Time Withstand Current
- 210 A 40 °C - 1 s || 105 A 40 °C - 10 s || 61 A 40 °C - 1 min || 30 A 40 °C - 10 min
Power Dissipation In W3.5 W at Ie AC-3
Average Impedance2.5 mOhm - Ith 15 A 50 Hz
[Ith] Conventional Free Air Thermal Current15 A (at 50 °C)
Rated Breaking Capacity250 A at 440 V conforming to IEC 60947
Irms Rated Making Capacity250 A at 440 V conforming to IEC 60947
Thermal Overload Classclass 5…30
RangeTeSys
Motor Starter Typedirect on line
Function Availableupstream voltage presence detection || electrical line and load protection || power and energy monitoring when connected with TPRVM voltage module || safe stop function available when connected with a TPRSM module
Overvoltage CategoryIII
Product CompatibilityTPRBC bus coupler || TPRVM voltage interface module || TPRSM SIL interface module
Motor Power Hp0.33 hp at 120 V AC 60 Hz for 1 phase motors || 1 hp at 240 V AC 60 Hz for 1 phase motors || 2 hp at 208 V AC 60 Hz for 3 phases motors || 2 hp at 240 V AC 60 Hz for 3 phases motors || 5 hp at 480 V AC 60 Hz for 3 phases motors || 7.5 hp at 600 V AC 60 Hz for 3 phases motors
[Ui] Rated Insulation Voltage690 V IEC 60947-4-1 || 600 V UL 60947-4-1 || 600 V CSA C22.2 No 60947-4-1
Poles Description3P 3 NO
Complementary
- Mounting Mode
- horizontal and vertical 35 mm symmetrical DIN rail)
- Product Certifications
- EAC || UL || CSA || CCC
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
- Net Weight
- 0.656 kg
- Maximum Operating Rate
- 3600 cyc/mn AC-3
- Electrical Durability
- 2 Mcycles 9 A AC-3 440 V || 1.2 Mcycles 15 A AC-1 440 V
- Safety Function
- safe stop: category 0 conforming to IEC 60204-1 when associated with a TPRSM module || safe stop: category 1 conforming to IEC 60204-1 when associated with a TPRSM module
- Width
- 45 mm
- Tightening Torque
- 1.7-1.7 N.m flat Ø 6 mm || 1.7-1.7 N.m Philips No 2
- Safety Level
- SIL 2 conforming to IEC 61508 in single channel system architecture || SILCL 2 conforming to IEC 62061 in single channel system architecture || PL = d category 2 conforming to ISO 13849-1 in single channel system architecture
Height116 mm
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Connections - Terminalsscrew-clamp terminals 1 1-4 mm² AWG 16...AWG 12)rigid || screw-clamp terminals 2 1-4 mm² AWG 16...AWG 12)rigid || screw-clamp terminals 1 1.5-4 mm² AWG 16...AWG 12)flexible without cable end || screw-clamp terminals 2 1.5-4 mm² AWG 16...AWG 12)flexible without cable end || screw-clamp terminals 1 1-4 mm² AWG 16...AWG 12)flexible with cable end || screw-clamp terminals 2 1-2.5 mm² AWG 16...AWG 14)flexible with cable end
Metering Typetime device ON || time device switch ON || number of faults || number of switching cycles || number of device power cycles || average current Iavg || average voltage Vavg || max current Imax || max voltage Vmax || active and reactive power with voltage module || active and reactive energy with voltage module || true power factor with voltage module
Local SignallingDS (device status) 1 LED green/red) || LS (load status) 1 LED green/red)
Mechanical Durability30 Mcycles
Operating Time< 100 ms closing || < 30 ms opening
Depth115 mm
Protection Typethermal overload protection || motor overheat || overcurrent || undercurrent || jam || long start || stall || rapid cycle lockout || rapid restart lockout || phase sequence || phase loss || phase reversal || phase unbalance || ground current
Environment
- Ambient Air Temperature For Operation
- -10-50 °C without derating || 50-60 °C with current derating
- Vibration Resistance
- 1.5 mm peak to peak 3-13 Hz) IEC 60068-2-6 || 1 gn 13-200 Hz) IEC 60068-2-6
- Pollution Degree
- 2
- Protective Treatment
- TC
- Ip Degree Of Protection
- IP20
- Fire Resistance
- 960 °C UL 94 || 850 °C IEC 60695-2-1 || 650 °C IEC 60695-2-12
Shock Resistance15 gn 11 ms) IEC 60068-2-27
Electromagnetic Compatibilityelectrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4 || surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 || surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5 || conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6
Ambient Air Temperature For Storage-25-70 °C
Relative Humidity5-95 %
Operating Altitude0...2000 m without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1904009EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1904009EN
Halogen Content PerformanceHalogen free plastic parts product
