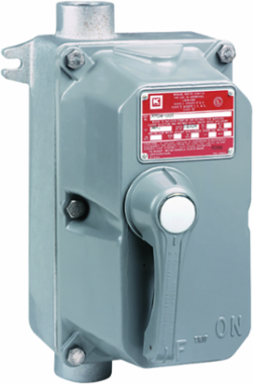

Killark XMSW-1CT Manual Motor Starter NEMA Size 1, 3-Pole, Indoor/Outdoor, 600V, Max 10 HP
- MPN: XMSW-1CT
- UPC: 783936912585
- PPN: HBL-XMSW-1CT
- UNSPSC: 39121521
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Manual Motor Starter - NEMA Size 1 - 3-Pole; 3Ø, Ac
Features
- Rectangular bolted cover design provides for attractive, compact, uniform installations.
- Enclosure and external handle are diecast copper-free (less than 0.4%) aluminum alloy.
- Cast “ON,” “OFF,” “TRIPPED” markings on cover align with external handle and provide clear indication of enclosed starter condition.
- External handle is a vault type with standard provisions for locking in the “OFF” position with up to three pad-locks.
- Provision for locking in “ON” position is available as factory modification (add suffix SU-40 to catalog number).
- Two cast 1” NPT conduit hubs with integral pipe stop, one top and one bottom, are standard on all assemblies.
- Killark's XMSW Series of Hazardous Location Manual Motor Starters provide non-reversing manual starting and stopping of motor loads. Rated for indoor and outdoor applications, the copper-free aluminum construction is ideal for harsh and hazardous environments. Note: Overload Heaters are required, but not included as standard, and need to be specified based on FLA (Full Load Amps) of motor.
Specifications
Key Specifications
- Country of Origin
- United States
- Horsepower - Maximum
- 10
- Special Features
- Killark's XMSW Series of Hazardous Location Manual Motor Starters provide non-reversing manual starting and stopping of motor loads. Rated for indoor and outdoor applications, the copper-free aluminum construction is ideal for harsh and hazardous environments. Note: Overload Heaters are required, but not included as standard, and need to be specified based on FLA (Full Load Amps) of motor.
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- MANUAL MOTOR STARTER
- Harmonization Code
- 8536504000
- MSDS Flag
- No
- UL File Number
- E12379
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936912585
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Size1
Voltage Rating600 V
Class CodeD25
Freight Class Code06316011
Image Actual Or RepresentativeA
Sub Class CodeD25D253
SeriesXMSW Series
BOX SIZE(in)
NAICS Code3353146101
