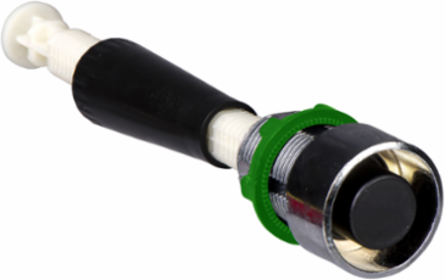

Schneider Electric XB4BA962 Harmony XB4 Blue Flush Pushbutton 22 mm for 130-257 mm Actuation
- MPN: XB4BA962
- PPN: SCH-XB4BA962
CAD
$39.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Harmony XB4 Blue Flush Pushbutton from Schneider Electric stands out in the realm of automation and control with its robust 22 mm design tailored for actuation distances between 130 to 257 mm. This pushbutton is engineered for responsive performance, providing a reliable interface in various industrial applications. Its durable construction ensures longevity and consistent operation, making it an ideal choice for pilot devices where precision and efficiency are paramount. Whether utilized in machinery control or as part of a broader automation system, the XB4 pushbutton exemplifies quality and functionality, essential for demanding environments.
Documentation & Downloads
Specifications
Additional
- Operating Travel
- 14 mm
- Mechanical Durability
- 5,000,000 cycles
- Net Weight
- 0.071 kg
- Bezel Material
- Chromium plated metal
- Operator Profile
- Blue flush, unmarked
- IP Degree Of Protection
- IP66 IEC 60529
- IK Degree Of Protection
- IK03 IEC 50102
- Standards
- UL 508, EN/IEC 60947-5-5, JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-4, EN/IEC 60947-5-1, CSA C22.2 No 14, JIS C8201-1
- Ambient Air Temperature For Storage
- -40 to 70 °C
- Mercury Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above threshold
- RoHS Exemption Information
- Yes
- Weee
- Must be disposed per EU waste laws
- Warranty
- 18 months
- Device Short Name
- XB4
- Circularity Profile
- ENVEOLI1808008EN
Activating Distance130-257 mm
Mounting Diameter22 mm
Fixing Collar MaterialZamak
Head TypeStandard
Resistance To High Pressure Washer7,000,000 Pa / 1015 psi at 55-131 °C / °F, 0.1 m
NEMA Degree Of ProtectionNEMA 13, NEMA 4X
Electrical Shock Protection ClassClass I IEC 60536
Product CertificationsBV, LROS, GL, DNV, CSA, UL Listed
Ambient Air Temperature For Operation-40 to 70 °C
Toxic Heavy Metal FreeYes
China RoHS RegulationX
EU RoHS DirectivePro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer StatusGreen Premium product
Product Or Component TypeManual overload reset push-button
Range Of ProductHarmony XB4
