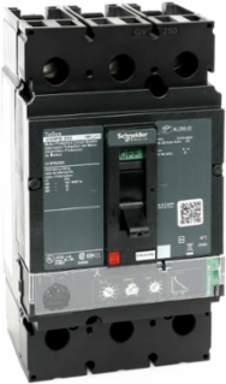

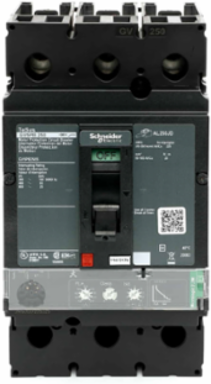

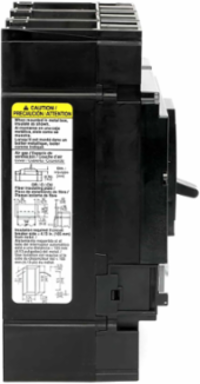

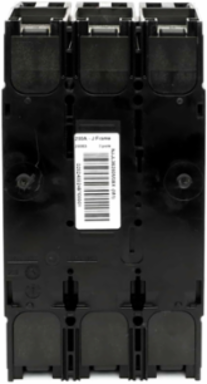

Schneider Electric GV5PB250S TeSys Motor Protection Circuit Breaker 250A 3P 600V 25kA
- MPN: GV5PB250S
- PPN: SCH-GV5PB250S
CAD
$2603.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for robust motor protection, this circuit breaker from Schneider Electric offers a reliable solution for various industrial applications. With a rated current of 250A and a three-pole configuration, it operates effectively at voltages up to 600V AC, ensuring high breaking capacities of 25kA. The electronic MicroLogic 2.2 M trip unit technology enhances its performance by providing precise thermal protection adjustments, while its compact dimensions (7.52 in height, 4.12 in width, and 5 in depth) allow for easy installation in confined spaces. This motor protection circuit breaker not only meets stringent UL and CSA certifications but is also compliant with environmental regulations, making it a responsible choice for modern industrial needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth5 in
Complementary Attributes
- Line Rated Current
- 250 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- lugs, load, lugs, line
- Carbon Footprint Of The Distribution Phase [A4]
- 0.5775543976, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.029878509, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 1 876 kg CO2 eq., 1876.409742108
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- AWG 3/0...350 kcmil aluminium/copper
- Mounting Mode
- unit mount
- Phase Failure Sensitivity
- yes
- Product Name
- TeSys GV5
- Returnability
- Yes
- Sustainable Packaging
- No
- Tightening Torque
- 26-26 N.m 95-185 mm² (AWG 3/0...350 kcmil)
- Trip Unit Technology
- electronicMicroLogic 2.2 M,
- Database Version
- 2015-04
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage up to 600Y/347VAC and 125A rated current. This protection is ensured in accordance with the following parameters:& 10- Number of poles: 3& 10- Rated short-circuit current interruption rating Ii at 480Vac = 65kA (according to UL489)& 10- Tripping curve: long time and instantanous protections
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime, In Kwh
- 2710
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US
- Width Nominal
- 4.12 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Certificate AgencyUL Listed, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.3226776506
Carbon Footprint Of The Manufacturing Phase [A1 To A3]15 kg CO2 eq., 15.0417243976
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionPPIBS
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2206031EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2539
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Number Of Poles3P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typemotor protection circuit breaker
Software VersionEIME v5.5
Thermal Protection Adjustment Range114-217 A
Total Lifecycle Carbon Footprint1 892 kg CO2 eq.
Pep CodeENVPEP2206031EN
Pep Verification Date2016-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; 120V; US
Height Nominal7.52 in
[Ue] Rated Operational Voltage600 V AC
Package Weight(Lbs)2.268 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 1892.3815770628
- Circularity Profile
- ENVEOLI2206031EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2206031EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation40-40 °C
Environmental DisclosureENVPEP2206031EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2016-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- motor protection circuit breaker
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
