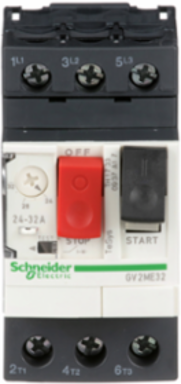

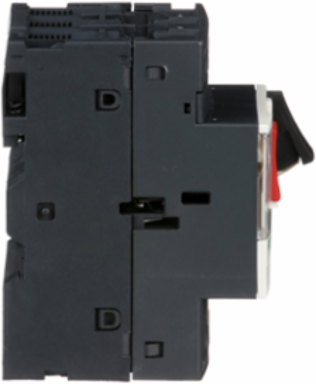

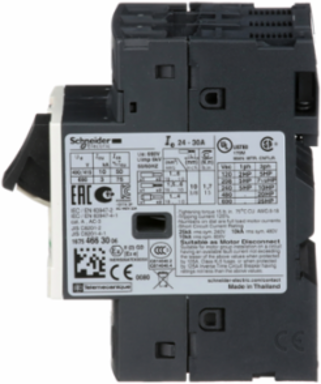

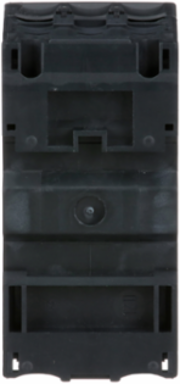

Schneider Electric GV2ME32 TeSys Deca Motor Circuit Breaker 3P 24-32A Thermal-Magnetic
- MPN: GV2ME32
- PPN: SCH-GV2ME32
CAD
$279.66
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 24 ampere to 32 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Features
- Equipped with an adjustable thermal bimetallic trip setting spanning from 24A to 32A, this manual motor starter allows field technicians to calibrate protection to match the specific full-load current (FLA) of large industrial motors. It features a precise magnetic trip set at a high 416A peak threshold to instantly isolate severe, high-energy short circuits, delivering robust protection for 3-phase motors rated up to 15 kW at 400/415V or 22 kW at 500V.
- Built with an integrated phase-failure differential mechanism, this circuit breaker continuously monitors current balance across all three incoming lines. If a single phase drops out or suffers a severe voltage imbalance due to upstream supply faults, the starter trips rapidly to isolate the motor, preventing catastrophic single-phasing conditions and localized winding burnouts.
- Featuring a high-visibility, finger-safe manual pushbutton interface, this motor protector combines local ON/OFF mechanical control with circuit isolation in a single unit. The clear, positive-break pushbuttons can be locked out in the "OFF" position using standard padlocks, satisfying strict Occupational Health and Safety (OHS) lockout/tagout (LOTO) protocols during downstream machinery maintenance.
- Boasting a highly compact, standardized 45mm frame width, this TeSys GV2 device mounts directly onto standard 35mm DIN rails or clips into centralized multi-motor busbar links. It complies fully with international IEC 60947-2, IEC 60947-4-1,
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, United Kingdom, Thailand, ZZ
Depth78.5 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Line Rated Current
- 32 A
- Rated Duty
- uninterrupted IEC 60947-4-1
Maximum Operating Rate25 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
- Mechanical Robustness
- shocks 30 Gn for 11 ms, vibrations 5 Gn, 5...150 Hz
- Mounting Position
- horizontal, vertical
- Utilisation Category
- category A IEC 60947-2, AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
- [Ics] Rated Service Short-circuit Breaking Capacity
- 100 % 230/240 V AC 50/60 Hz IEC 60947-2, 50 % 400/415 V AC 50/60 Hz IEC 60947-2, 50 % 440 V AC 50/60 Hz IEC 60947-2, 75 % 500 V AC 50/60 Hz IEC 60947-2, 75 % 690 V AC 50/60 Hz IEC 60947-2
- Carbon Footprint Of The Distribution Phase [A4]
- 0.08233418348388603, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.04117841915749615
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 9 kg CO2 eq., 8.86395212531129
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- push-button
- Device Short Name
- GV2ME
- Magnetic Tripping Current
- 537.6-537.6 A
- Network Frequency
- 50/60 Hz IEC 60947-2
- Number Of Poles
- 3P
- Power Dissipation Per Pole
- 2.5 W
- Product Name
- TeSys GV2
- Range
- TeSys Deca
- Software Version
- v6.2.4
- Sustainable Packaging
- Yes
- Tightening Torque
- 1.7 N.m screw clamp terminal
- Trip Unit Technology
- thermal-magnetic
- R Thermal Protection Adj Range 3
- 24-32 A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 98.55
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 89 mm
- [Ith] Conventional Free Air Thermal Current
- 32 A IEC 60947-2
- [Ui] Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Fixing Mode35 mm symmetrical DIN rail clipped, panel screwed with adaptor plate)
Motor Power Kw15-15 kW 400/415 V AC 50/60 Hz, 18.5-18.5 kW 500 V AC 50/60 Hz, 22-22 kW 690 V AC 50/60 Hz
Range Of ProductTeSys GV2, TeSys Deca
Certificate AgencyCCC, UL, CSA, EAC, ATEX, LROS (Lloyds register of shipping), BV, RINA, DNV-GL, UKCA
Connections - Terminalspower circuit: screw clamp terminal 2 cable(s) 1-6 mm² - solid, power circuit: screw clamp terminal 2 cable(s) 1.5-6 mm² - flexible without cable end, power circuit: screw clamp terminal 2 cable(s) 1-4 mm² - flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4527026902683291, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.634976413467982
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI121004
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2538
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeGV2ME
Device Applicationmotor protection
Fire Resistance960 °C IEC 60695-2-11
Mechanical Durability100000 cycles
Network TypeAC
Phase Failure Sensitivityyes IEC 60947-4-1
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typemotor circuit breaker
ReturnabilityYes
Suitability For Isolationyes IEC 60947-1
Thermal Protection Adjustment Range24-32 A IEC 60947-2
Total Lifecycle Carbon Footprint11 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1210004EN
Pep Verification Date2026-03-30
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; France, FR
Recyclability Potential, In %49
Width Nominal45 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-2
Package Weight(Lbs)280.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Climatic Withstand
- IACS E10
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1210004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint11.075143831688983
Circularity ProfileENVEOLI121004
Environmental DisclosureENVPEP1210004EN
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-03-30
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Range Of Product
- TeSys GV2, TeSys Deca
Product Or Component Typemotor circuit breaker
