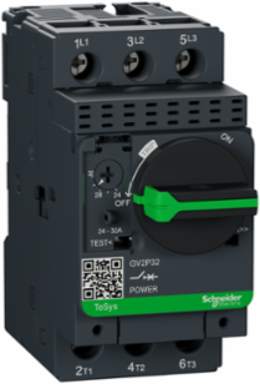

Schneider Electric GV2P32 TeSys Deca Motor Circuit Breaker, 3P, 24-32A, Thermal-Magnetic, Rotary Handle
- MPN: GV2P32
- PPN: SCH-GV2P32
CAD
$279.66
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. It provides a thermal-magnetic protection with a thermal setting range 24-32A, magnetic tripping at 13xIn, high breaking capacity Icu 50kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Features
- Featuring a built-in bimetallic adjustment dial spanning 24 to 32 Amps, this manual motor starter lets you dial in protection to match your motor’s nameplate FLA. This precise calibration prevents nuisance tripping during standard operational surges while providing a Class 10 trip rating to isolate harmful thermal overcurrents before insulation damage occurs.
- Boasting a robust 50kA ultimate short-circuit breaking capacity ($I_{cu}$) at 400/415V, the TeSys Deca GV2P32 safely interrupts extreme fault currents. This high-withstand performance ensures your control panels remain protected and code-compliant, making it ideal for rigorous industrial machinery, pumping systems, and HVAC installations.
- Designed with a tactile, spring-loaded rotary handle, this starter provides clear visible indication of "ON", "OFF", and "TRIPPED" statuses at a glance. The handle features built-in provisions for padlocking directly in the OFF position, simplifying your team's Lockout/Tagout (LOTO) safety protocols during routine downstream maintenance.
- When paired with a line-side insulating barrier, the GV2P32 achieves a stringent UL 508 Type E Self-Protected Combination Motor Controller designation. This engineering certification allows the unit to act as its own branch circuit disconnect and short-circuit protector, saving valuable DIN rail space and reducing total enclosure hardware costs.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 24-32 A IEC 60947-4-1
- Rated Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Motor Power
- 15 kW @ 400 V AC
- Trip Unit Technology
- Thermal-magnetic
- Phase Failure Sensitivity
- Yes IEC 60947-4-1
- Suitability for Isolation
- Yes IEC 60947-1 § 7-1-6
- Tightening Torque
- 1.7 N·m screw clamp terminal
- Height
- 89 mm (3.50 in)
- Mechanical Durability
- 100,000 cycles
- Operating Altitude
- 2000 m (6,562 ft)
- Ambient Air Temperature for Storage
- -40 to 80 °C (-40 to 176 °F)
- IP Degree of Protection
- IP20 IEC 60529
- Fire Resistance
- 960 °C (1,760 °F) IEC 60695-2-11
- Product Certifications
- CCC, UL, CSA, EAC, ATEX, LROS, BV, RINA, DNV-GL, UKCA
- Material
- dark grey (housing color)
- Device Application
- motor protection
- Utilisation Category
- Category A IEC 60947-2, AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
- Product Name
- TeSys GV2, TeSys Deca
- Circularity Profile
- ENVEOLI2211002
- Weee
- EU disposal compliance required
- Warranty
- 18 months
Magnetic Tripping Current416 A
Breaking Capacity50 kA @ 400/415 V AC IEC 60947-2
Thermal Protection Adjustment Range24-32 A IEC 60947-4-1
Network TypeAC
Poles3P
Connection TypeScrew clamp terminals
Width45 mm (1.77 in)
Depth97 mm (3.82 in)
Electrical Durability100,000 cycles AC-3 415 V In, 100,000 cycles AC-3e 415 V In
Ambient Air Temperature for Operation-20 to 60 °C (-4 to 140 °F)
Mechanical RobustnessShocks 30 Gn for 11 ms, Vibrations 5 Gn, 5-150 Hz
IK Degree of ProtectionIK04
StandardsEN/IEC 60947-2, EN/IEC 60947-4-1
ComplianceGreen Premium, RoHS, REACh, China RoHS exempt, EU RoHS compliant with exemptions
Fixing Mode35 mm symmetrical DIN rail clip or panel screw with 2 x M4 screws
Network Frequency50/60 Hz IEC 60947-4-1
Device Short NameGV2P
RangeTeSys Deca
Environmental DisclosureENVPEP2211002
Reach RegulationContains SVHC above threshold
