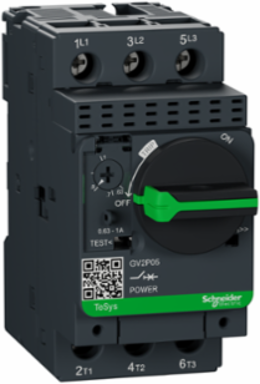

Schneider Electric GV2P05 TeSys Deca Motor Circuit Breaker 3P 0.63-1A Thermal Magnetic

MPN: GV2P05
PPN: SCH-GV2P05

$187.15

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys GV motor circuit breaker, 3 poles (3P), 1A/690V, for 3-phase motor applications 0.25kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.63-1A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).

Features

Featuring a dedicated 0.63A to 1A thermal adjustment dial alongside a fixed 13A instantaneous magnetic trip, the GV2P05 provides coordinated overload and short-circuit protection. This dual-action mechanism acts immediately to clear high-current faults while safely absorbing brief inrush currents during startup, preventing permanent winding damage to fractional-horsepower motors.
Engineered with an exceptional $I_{cu}$ breaking capacity of 100 kA at 400/415V, this manual motor starter safely interrupts extreme short circuits without risking catastrophic device failure. This high-withstand performance ensures your upstream distribution network remains uninterrupted, localizing the fault and protecting your staff and nearby control equipment.
The robust rotary handle offers clear, visible status positions (ON, TRIP, OFF) to ensure fast troubleshooting on the factory floor. Unlike basic push-button variants, the standalone "TRIP" position lets industrial maintenance electricians distinguish at a glance between a manual shutdown and an automatic electrical trip, cutting down diagnostic turnaround times.
This 3-pole motor circuit breaker continuously monitors current balance and trips automatically if a phase loss or severe imbalance is detected conforming to IEC 60947-4-1. Preventing a 3-phase motor from "single-phasing" eliminates rapid thermal overheating and premature motor failure, securing the reliability of your automated conveyor systems and pumps.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Costa Rica, France, United Kingdom, Mexico, Thailand, United States

Depth	97 mm

Physical Attributes

Color	dark grey

Complementary Attributes

Line Rated Current	1 A
Rated Duty	uninterrupted IEC 60947-4-1

Maximum Operating Rate	25 cyc/h

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB, SC
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Durability	100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
Mounting Position	horizontal, vertical
Utilisation Category	category A IEC 60947-2AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
[Ics] Rated Service Short-circuit Breaking Capacity	100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-2, 100 % 440 V AC 50/60 Hz IEC 60947-2, 100 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 690 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The Distribution Phase [A4]	0.0923095728029102, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.03680775299710592
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	40 kg CO2 eq., 39.83372946850174
Local Publishable Date	2026-06-30
Stocking Flag	N
Device Type	LV equipment - Low voltage circuit breaker
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	3
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	rotary handle
Device Short Name	GV2P
Magnetic Tripping Current	15.1-15.1 A
Mechanical Robustness	shocks 30 Gn for 11 msvibrations 5 Gn, 5...150 Hz
Network Frequency	50/60 Hz IEC 60947-2
Number Of Poles	3P
Power Dissipation Per Pole	2.5 W
Product Name	TeSys GV2
Range	TeSys Deca
Software Version	v6.2.4
Sustainable Packaging	Yes
Tightening Torque	1.7 N.m screw clamp terminal
Trip Unit Technology	thermal-magnetic
R Thermal Protection Adj Range 3	0.63-1 A
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	98.55
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	89 mm
[Ith] Conventional Free Air Thermal Current	1 A IEC 60947-2
[Ui] Rated Insulation Voltage	690 V AC 50/60 Hz IEC 60947-2
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536200020

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market Segmentation	Commercial, Industrial
Fixing Mode	35 mm symmetrical DIN rail clipped, panel screwed with 2 x M4 screws)
Range Of Product	TeSys GV2, TeSys Deca
Certificate Agency	CCC, UL, CSA, EAC, ATEX, LROS (Lloyds register of shipping), BV, RINA, DNV-GL, UKCA
Connections - Terminals	power circuit: screw clamp terminal 2 cable(s) 1-6 mm² - solid, power circuit: screw clamp terminal 2 cable(s) 1.5-6 mm² - flexible without cable end, power circuit: screw clamp terminal 2 cable(s) 1-4 mm² - flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.5472314673555232, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 1.9839778765972182
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2211002
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1936
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	GV2P
Device Application	motor protection
Fire Resistance	960 °C IEC 60695-2-11
Mechanical Durability	100000 cycles
Motor Power Kw	0.25-0.25 kW 400/415 V AC 50/60 Hz0.55-0.55 kW 690 V AC 50/60 Hz
Network Type	AC
Phase Failure Sensitivity	yes IEC 60947-4-1
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	motor circuit breaker
Returnability	Yes
Suitability For Isolation	yes IEC 60947-1
Thermal Protection Adjustment Range	0.63-1 A IEC 60947-2
Total Lifecycle Carbon Footprint	42 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2211002EN
Pep Verification Date	2026-04-17
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Europe, EU-27
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %	51
Width Nominal	45 mm
[Ue] Rated Operational Voltage	690 V AC 50/60 Hz IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-2
Package Weight(Lbs)	262.000 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Take Back	No
Mercury Free	Yes
Ambient Air Temperature For Operation	-20-60 °C-20-60 °C
Climatic Withstand	IACS E10
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	<= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2211002EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	42.49405613825449
Circularity Profile	ENVEOLI2211002
Environmental Disclosure	ENVPEP2211002EN
Ip Degree Of Protection	IP20 IEC 60529
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2026-04-17
Psr Version	PSR-0005-ed3-2023 06 06
