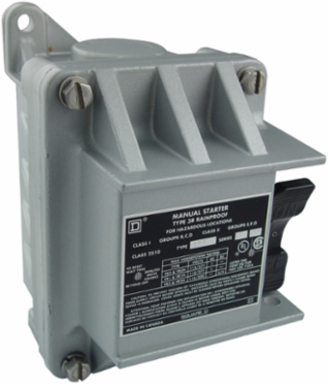

Square D 2510FR1H Manual Starter 1HP at 277VAC, 16A, NEMA 7&9, 1 Pole, Non-Reversing

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This one pole non-reversing manual starter has a single phase motor rating of up to 1 HP at 115, 230 and 277 VAC. Melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. A cast aluminum NEMA 7 and 9 hazardous location, Class 1, Groups B, C & D and Class II, Groups E, F, & G enclosure is used to protect this starter. This enclosure has one conduit entry on the bottom and one on the top. The 0.75 inch conduit entries are tapped with number 14 pipe threads. This manual starter is 6.36 inches tall, 3.95 inches wide and 4.35 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.
