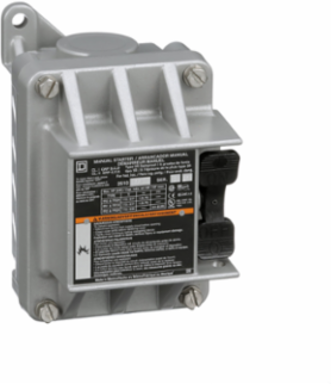

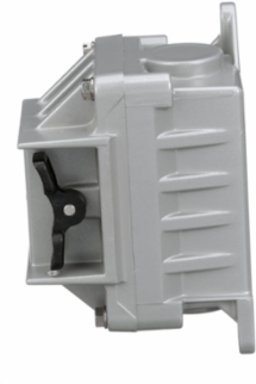

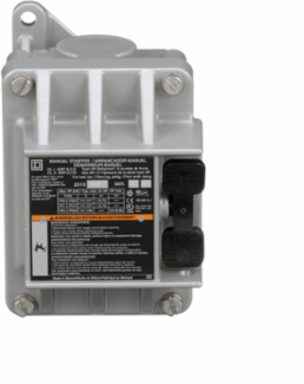

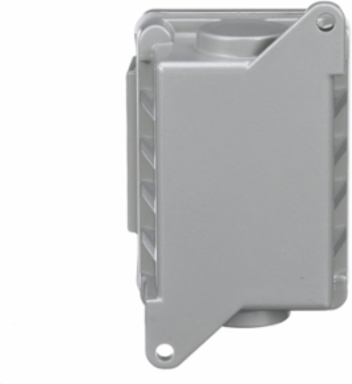

Square D 2510FR2 Non-Reversing Manual Motor Starter 1 HP, 16A, NEMA 7/9, Toggle Control
- MPN: 2510FR2
- UPC: 785901554219
- PPN: SCH-2510FR2
CAD
$659.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Non-Reversing Manual Motor Starter 1 HP, 16A, NEMA 7/9, Toggle Control
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth4.35 in
Complementary Attributes
- Maximum Horse Power Rating
- 1 hp 115 V AC, 1 hp 277 V AC, 0.75 hp 115 V DC, 0.75 hp 230 V DC, 2 hp 230 V AC
Line Rated Current16 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL listed file E42243 CCN NLRV, CSA LR25490 class 3211 05
- Carbon Footprint Of The Distribution Phase [A4]
- 0.4719167388397627, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.19537899769938816, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 9 kg CO2 eq., 8.860743617797104
- Local Publishable Date
- 2026-04-10
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Cable Entry
- 0.75 NPT (bottom)
- Electrical Connection
- screw clamp terminals
- Local Signalling
- no indicator
- Number Of Poles
- 2P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- F
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 22 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential, In %
- 74
- Width Nominal
- 3.95 in
- Package Weight(Lbs)
- 1.633 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
[Ue] Rated Operational Voltage277 V AC, 230 V DC
Carbon Footprint Of The End-of-life Phase [C1 To C4]3 kg CO2 eq., 2.549336848577927
Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 9.569943241880242
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg GaugeAWG 14...AWG 12 copper
Control Typetoggle switch (with lock-off)
Energy Efficiency OptimizedFalse
Motor Starter Typenon reversing
Phase1 phase
Product Or Component TypeSingle Unit Manual Starter
Resetmanual
Software Versionv6.2.5-6
Thermal Overload Typemelting alloy
Pep CodeENVPEP2507018EN
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal6.36 in
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 21.647319444794423
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2507018EN
Nema Degree Of ProtectionNEMA 3R/7/9 Cast Aluminium standard size
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2507018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- F
Product Or Component TypeSingle Unit Manual Starter
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
