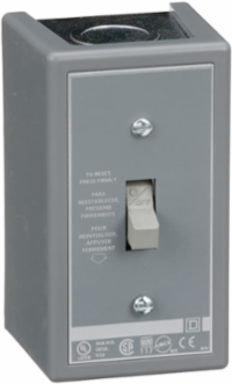

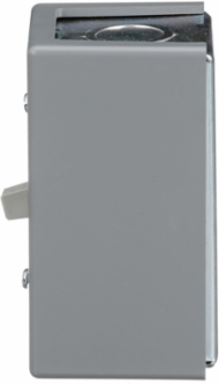

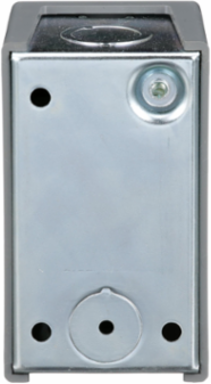

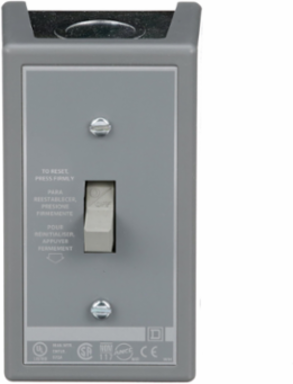

Square D 2510FG5 Manual Starter 1HP 277VAC 16A 1 Pole NEMA 1 Enclosure
- MPN: 2510FG5
- UPC: 785901554011
- PPN: SCH-2510FG5
CAD
$180.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

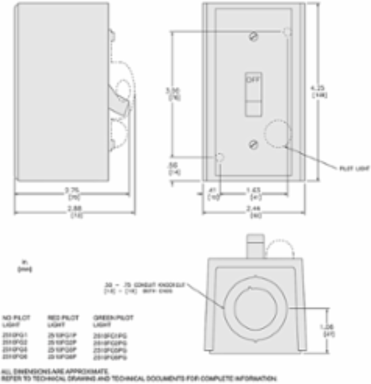

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. These manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.88 inches deep. This device is without a pilot light indicator. Manual starter has a handle guard that can be used for lock off. Manual starter is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Thermal Overload Type
- melting alloy
- Product Or Component Type
- Single Unit Manual Starter
Range Of ProductF
Complementary
- Motor Starter Type
- non reversing
- Height
- 4.25 in
- Electrical Connection
- screw clamp terminals
- [In] Rated Current
- 16 A
- Awg Gauge
- AWG 14...AWG 12 copper
- Depth
- 2.88 in
- Network Number Of Phases
- 1 phase
- Control Type
- toggle switch (with lock-off)
Resetmanual
Poles Description1P
Cable Entry0.5" and 0.75" knock-outs (top and bottom)
Local Signallingno indicator
Width2.44 in
Motor Power Hp1 hp 115 V AC || 1 hp 230 V AC || 1 hp 277 V AC
[Ue] Rated Operational Voltage277 V AC
Environment
- Product Certifications
- UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
Nema Degree Of ProtectionNEMA 1 plastic standard size
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Not compliant
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
