Square D 2510MCR3 Integral Horsepower Manual Starter, NEMA M-1, 10HP, 600VAC, 3 Pole

MPN: 2510MCR3
UPC: 785901800620
PPN: SCH-2510MCR3
UNSPSC: 39121521

$1760.63

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

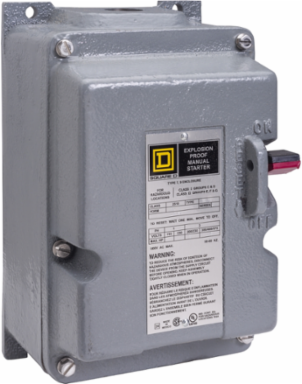

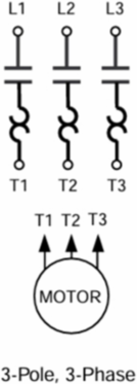

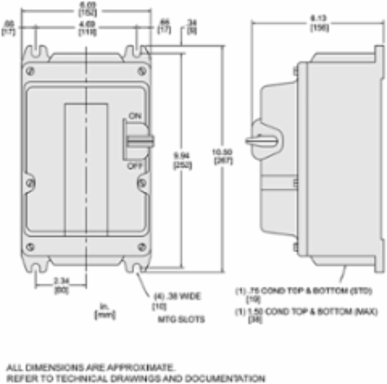

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This NEMA Size M-1 three pole starter is rated for 7.5 HP at 200-230 VAC and 10 HP at 380-575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. These thermal units are ordered separately to match motor data. A cast aluminum NEMA 7 and 9 hazardous location, Class 1, Groups C & D and Class II, Groups E, F, & G enclosure is used to protect this starter. This enclosure has one 0.75 inch conduit entry on the bottom and one on the top. Enclosure is 10.50 inches tall, 6.00 inches wide and 6.13 inches deep. A toggle handle is used to turn the manual switch on and off. The toggle handle can be padlocked in the off or stop position. 2510M integral horsepower starters are UL listed and CSA certified.

Features

Inexpensive motor control where low voltage protection is NOT required
Available in NEMA Sizes M-0, M-1, and M-1P
Reliable melting alloy thermal units
Simple operation
UL and CSA

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	6.13 in

Weight	14061 g

Complementary Attributes

Maximum Horse Power Rating	7.5-7.5 hp 200...230 V AC, 3 phase10-10 hp 380...575 V AC, 3 phase

Ue Rated Operational Voltage	600 V AC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL listed file E58760 CCN NPXZ, CSA LR26817 class 3218 04
Carbon Footprint Of The End Of Life Phase C1 To C4	22 kg CO2 eq., 21.95114845551392
Carbon Footprint Of The Manufacturing Phase A1 To A3	82 kg CO2 eq., 82.40230981266264
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1930
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Awg Gauge	14 AWG...8 AWG copper
Energy Efficiency Optimized	False
Motor Starter Type	non reversing
Number Of Thermal Units Required	3
Product Or Component Type	Manual Starter
Returnability	Yes
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	116 kg CO2 eq.
Data Source	extrapolated product
Width Nominal	6 in
Customs Code	8536504000
Functional Unit Description	When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
Functional Unit Unit	unit
Recyclability Potential In %	74

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase A4	4.063454540615985, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	1.6823172606559076, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	6 kg CO2 eq., 6.282128775899118
Local Publishable Date	2025-11-13
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Electrical Connection	pressure wire clamp
Local Signalling	no indicator
Number Of Poles	3P
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	M
Software Version	v6.2.5-6
Thermal Overload Type	melting alloy
Database Version	2024-01
Height Nominal	10.5 in
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Carbon Footprint	116.38135884534755
Eu Rohs Directive	Compliant
Nema Size	M-1
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-09-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2507018EN
Nema Degree Of Protection	NEMA 7/9 cast iron
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2507018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
