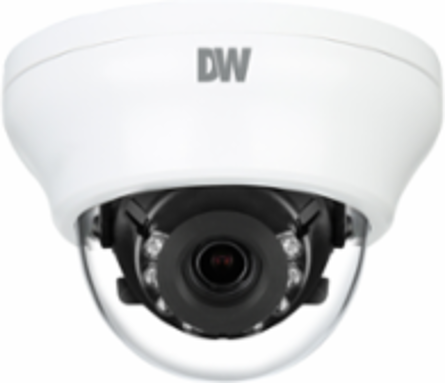

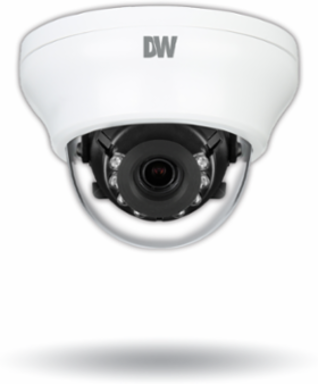

Digital Watchdog DWC-MD72Di28T MEGApix® 2.1MP/1080p Indoor Dome IP Camera, 2.8mm Fixed Lens, IR, 109° FoV
- MPN: DWC-MD72Di28T
- UPC: 812226031849
- PPN: DWD-DWC-MD72Di28T
CAD
$468.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Experience unparalleled surveillance capabilities with the MEGApix® 2.1MP/1080p indoor dome IP camera, designed by Digital Watchdog. This advanced camera features a 2.8mm fixed lens and a robust image sensor that delivers crisp, high-definition video at real-time 30 frames per second. Equipped with Smart DNR™ for superior noise reduction and a true day/night mechanical IR cut filter, it ensures clear imagery in both bright and low-light conditions, with an impressive IR range of up to 50 feet.
Versatile and user-friendly, the camera supports dual-streaming and multiple video compression formats, including H.265, H.264, and MJPEG, allowing for efficient bandwidth management. With features like motion detection, programmable privacy zones, and backlight compensation, this camera adapts seamlessly to various environments, making it an ideal choice for comprehensive indoor security. Plus, its durable construction and 5-year warranty provide peace of mind, ensuring reliable performance in any setting.
Features
- 2.1MP/1080p 1/2.9" image sensor at real-time 30fps
- 2.8mm fixed lens
- Digital Wide Dynamic Range (D-WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 50' Smart IR™ with intelligent camera sync
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Web server built-in
- PoE class 2 and DC12V
- Waterproof cabling
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
MECHANICAL
- Material
- Plastic housing, polycarbonate dome
- Warranty
- 5 year warranty
Weight0.66 lbs (0.3kg)
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 2 (adaptor not Included)
Power consumptionDC12V - max 3.8W; PoE - max 5.5W
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- 2x, 3x, 5x, 6x, 7.5x, 10x
- Day / night
- Auto, day (color), night (B/W)
- Wide dynamic range (WDR)
- D-WDR On, Off
- Privacy zones
- 16 programmable privacy masks
- Alarm notifications
- Notifications via e-mail and FTP server recording
Shutter speed1/30 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Backlight compensation (BLC)Yes
Mirror and flipYes
LENS
- Focal length
- 2.8mm, F2.0
- Field of view (FoV)
- 109°
Lens typeFixed lens
IR distance50ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
- IP
- IPv4, IPv6
- ONVIF conformance
- Yes
- Video management software
- DW Spectrum® IPVMS
Video compression typeH.265, H.264, MJPEG
Video bitrate100Kbps ~ 10Mbps, multi-rate for preview and recording
Streaming capabilityDual-stream at different rates and resolutions
ProtocolTCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
Web viewerOS - Windows®, Mac® OS, Linux® Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
- Image sensor
- 2.1MP/1080p 1/2.9” CMOS
Total pixels2001 (H) × 1121 (V)
