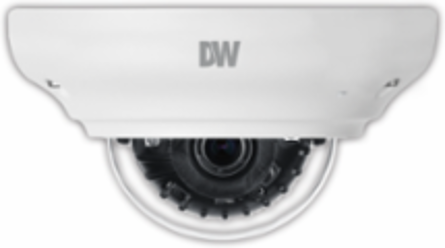

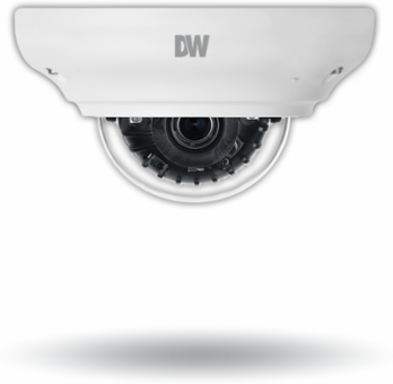

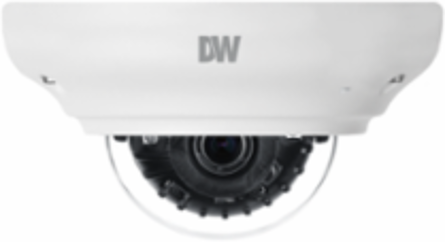

Digital Watchdog DWC-MV72Di4TW MEGApix® 2.1MP/1080p ultra low-profile vandal dome IP camera with 4.0mm fixed lens and IR
- MPN: DWC-MV72Di4TW
- UPC: 812226032563
- PPN: DWD-DWC-MV72Di4TW
CAD
$531.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This MEGApix® IP camera provides 2.1MP/1080p resolution at real-time 30fps. It includes a 4.0mm fixed lens and simultaneous H.265/H.264/MJPEG codec support. The IP67-rated, IK-10 impact-resistant ultra low-profile vandal dome camera brings the capabilities of a robust camera in a small and discrete housing. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market. Set of five (5) white decorative rings for our MEGApix® and Star-Light Plus™ cameras in ultra-low-profile V7 housings (DWC-xV7xxxx) make it easy to customize the look of the cameras for specific applications. Simply paint the rings to match your décor.
Features
- 2.1MP/1080p 1/2.9" image sensor at real-time 30fps
- 4.0mm fixed lens
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- Digital Wide Dynamic Range (D-WDR)
- 80' Smart IR™ with intelligent camera sync
- Ultra low-profile vandal dome camera housing
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- Motion detection
- Web server built-in
- PoE class 2 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IP rating
- IP67-rated
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IK ratingIK10 impact-resistant
MECHANICAL
- Material
- Aluminum vandal housing, polycarbonate dome
- Warranty
- 5 year warranty
Weight0.88 lbs (0.4kg)
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 2 (adaptor not Included)
Power consumptionDC12V - max 3.7W; PoE - max 5.4W
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- 2x, 3x, 5x, 6x, 7.5x, 10x
- Day / night
- Auto, day (color), night (B/W)
- Wide dynamic range (WDR)
- D-WDR On, Off
- Privacy zones
- 16 programmable privacy masks
- Alarm notifications
- Notifications via e-mail and FTP server recording
Shutter speed1/30 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Backlight compensation (BLC)Yes
Mirror and flipYes
LENS
- Focal length
- 4.0mm, F2.0
- Field of view (FoV)
- 84°
Lens typeFixed lens
IR distance80ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
- IP
- IPv4, IPv6
- ONVIF conformance
- Yes
- Video management software
- DW Spectrum® IPVMS
Video compression typeH.265, H.264, MJPEG
Video bitrate100Kbps ~ 10Mbps, multi-rate for preview and recording
Streaming capabilityDual-stream at different rates and resolutions
ProtocolTCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
Web viewerOS - Windows®, Mac® OS, Linux® Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
- Image sensor
- 2.1MP/1080p 1/2.9” CMOS
Total pixels2001 (H) × 1121 (V)
