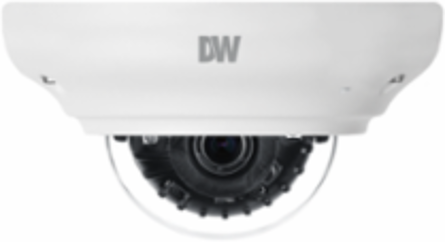

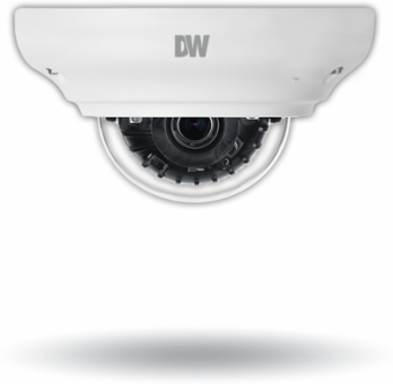

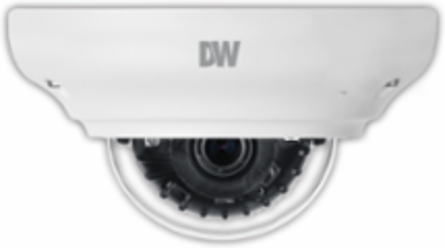

Digital Watchdog DWC-MV75Wi28TW MEGApix IVA™ 5MP Ultra Low-Profile Vandal Dome IP Camera with 2.8mm Lens, IP67, IK10
Digital Watchdog DWC-MV75Wi28TW MEGApix IVA™ 5MP Ultra Low-Profile Vandal Dome IP Camera with 2.8mm Lens, IP67, IK10
- MPN: DWC-MV75Wi28TW
- PPN: DWD-DWC-MV75Wi28TW
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$711.48/ EA
Description
Experience unparalleled surveillance capabilities with the MEGApix IVA™ 5MP ultra low-profile vandal dome IP camera from Digital Watchdog. This advanced security solution is equipped with a robust 5MP Star-Light Plus CMOS image sensor, allowing for stunning color imaging even in near-total darkness, thanks to its innovative Smart IR™ technology that provides an impressive 80-foot range. With a variety of fixed lens options (2.8mm, 4.0mm, and 6.0mm), this camera is designed to adapt to various environments while delivering exceptional image clarity at real-time 30fps.
Built to withstand the elements, the camera boasts an IP67 rating for dust and water resistance, along with an IK10 impact rating for vandal resistance, ensuring reliable performance in challenging conditions. The inclusion of features such as true day/night functionality, programmable privacy zones, and advanced video analytics makes it a versatile choice for any security setup. Seamless integration with DW Spectrum® IPVMS further enhances its usability, making this camera an ideal solution for comprehensive surveillance needs.
Features
- 5MP 1/2.8” image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- 2.8mm fixed lens (DWC-MV75Wi28TW)
- 4.0mm fixed lens (DWC-MV75Wi4TW)
- 6.0mm fixed lens (DWC-MV75Wi6TW)
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 80’ Smart IR™ with intelligent camera sync
- Ultra low-profile vandal dome camera
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- PoE class 3 and DC12V
- UL listed
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IK rating
- IK10 impact-resistant
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IP ratingIP67-rated
MECHANICAL
- Material
- Aluminum vandal housing, polycarbonate dome
- Warranty
- 5 year warranty
Weight0.79 lbs (0.36kg)
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumptionDC12V - max 6W; PoE - max 7.2W
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- 1/2,1/3,1/5,1/6,1/7.5, 1/10
- Day / night
- Auto, day (color), night (B/W)
- Wide dynamic range (WDR)
- True WDR (D-WDR) On, Off
- Privacy zones
- 16 programmable privacy masks
- Alarm notifications
- Notifications via e-mail, FTP, alarm output and SD card recording
Shutter speed1/30 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR) dB120dB
Mirror and flipYes
Memory slotMicro SD / SDHC / SDXC (card not included)
LENS
- Focal length
- 2.8mm, F1.8 (DWC-MV75Wi28TW), 4.0; mm, F2.0 (DWC-MV75Wi4TW); 6.0mm, F2.0 (DWC-MV75Wi6TW);
- Field of view (FoV)
- 102.4° (DWC-MV75Wi28TW); 82.3° (DWC-MV75Wi4TW), 51.9; ° (DWC-MV75Wi6TW)
Lens typeFixed lens
IR distance80ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Resolution
- H.265 - 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF; H.264 - 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF; MJPEG - 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF
- Video bitrate
- 100Kbps ~ 10Mbps, multi-rate for preview and recording
- Streaming capability
- Dual-stream at different rates and resolutions
- Protocol
- TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
- Web viewer
- OS - Windows®, Mac® OS, Linux®, Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®, NOTE - Chrome browser is recommended for IVA configuration.
Video compression typeH.265, H.264, MJPEG
Frame rateUp to 30fps at all resolutions
Bitrate controlMultistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IPIPv4, IPv6
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS
- Image sensor
- 5MP 1/2.8” Star-Light Plus CMOS
- Test Monitor Video Output
- Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total pixels2592 (H) × 1944 (V)
