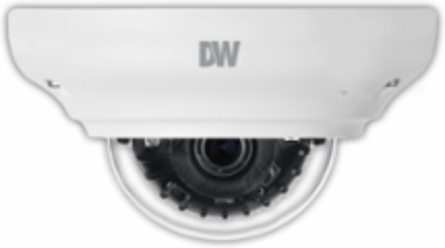

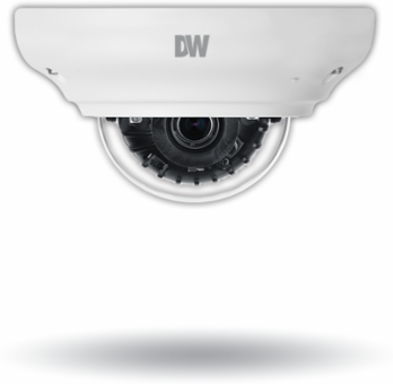

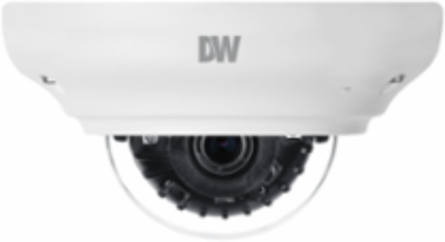

Digital Watchdog DWC-MV75Wi6TW MEGApix IVATM 5MP Ultra Low-Profile Vandal Dome IP Camera, 2.8mm/4.0mm/6.0mm Lens
- MPN: DWC-MV75Wi6TW
- UPC: 812226032297
- PPN: DWD-DWC-MV75Wi6TW
CAD
$739.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Experience unparalleled surveillance capabilities with the MEGApix IVATM 5MP ultra low-profile vandal dome IP camera, engineered by Digital Watchdog. This advanced camera features a robust design that is IK10-rated for impact resistance and IP67-rated for dust and water protection, making it ideal for both indoor and outdoor environments. With options for 2.8mm, 4.0mm, and 6.0mm fixed lenses, it delivers stunning high-definition imagery at resolutions up to 2592x1944, while its Star-Light PlusTM technology ensures vibrant color capture even in near-total darkness.
Equipped with intelligent video analytics, true wide dynamic range, and smart 3D digital noise reduction, this camera offers superior performance in challenging lighting conditions. The dual-stream capability allows for flexible video management, and with features like programmable privacy zones and motion detection, you can customize your surveillance setup to meet specific security needs. Plus, the inclusion of a micro SD card slot for local storage and a five-year warranty underscores the reliability and longevity of this sophisticated surveillance solution.
Features
- 5MP 1/2.8” image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- 2.8mm fixed lens (DWC-MV75Wi28TW)
- 4.0mm fixed lens (DWC-MV75Wi4TW)
- 6.0mm fixed lens (DWC-MV75Wi6TW)
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 80’ Smart IR™ with intelligent camera sync
- Ultra low-profile vandal dome camera
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- PoE class 3 and DC12V
- UL listed
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
|---|---|
| IK rating | IK10 impact-resistant |
| Other certifications | CE, FCC, RoHS |
| Operating humidity | 10–90% RH (non–condensing) |
|---|---|
| IP rating | IP67-rated |
MECHANICAL
| Material | Aluminum vandal housing, polycarbonate dome |
|---|---|
| Warranty | 5 year warranty |
| Weight | 0.79 lbs (0.36kg) |
|---|
ELECTRICAL
| Power requirement | DC12V, POE IEEE 802.3af class 3 (adaptor not Included) |
|---|
| Power consumption | DC12V - max 6W; PoE - max 7.2W |
|---|
OPERATIONAL
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
|---|---|
| Slow shutter | 1/2,1/3,1/5,1/6,1/7.5, 1/10 |
| Day / night | Auto, day (color), night (B/W) |
| Wide dynamic range (WDR) | True WDR (D-WDR) On, Off |
| Privacy zones | 16 programmable privacy masks |
| Alarm notifications | Notifications via e-mail, FTP, alarm output and SD card recording |
| Shutter speed | 1/30 ~ 1/32,000 |
|---|---|
| Auto gain control | Auto |
| Smart DNR™ 3D digital noise reduction | 3D DNR |
| Wide dynamic range (WDR) dB | 120dB |
| Mirror and flip | Yes |
| Memory slot | Micro SD / SDHC / SDXC (card not included) |
LENS
| Focal length | 2.8mm, F1.8 (DWC-MV75Wi28TW), 4.0; mm, F2.0 (DWC-MV75Wi4TW); 6.0mm, F2.0 (DWC-MV75Wi6TW); |
|---|---|
| Field of view (FoV) | 102.4° (DWC-MV75Wi28TW); 82.3° (DWC-MV75Wi4TW), 51.9; ° (DWC-MV75Wi6TW) |
| Lens type | Fixed lens |
|---|---|
| IR distance | 80ft range |
NETWORK
| LAN | RJ45 (10/100Base-T) |
|---|---|
| Resolution | H.265 - 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF; H.264 - 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF; MJPEG - 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording |
| Streaming capability | Dual-stream at different rates and resolutions |
| Protocol | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF |
| Web viewer | OS - Windows®, Mac® OS, Linux®, Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®, NOTE - Chrome browser is recommended for IVA configuration. |
| Video compression type | H.265, H.264, MJPEG |
|---|---|
| Frame rate | Up to 30fps at all resolutions |
| Bitrate control | Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4, IPv6 |
| ONVIF conformance | Yes |
| Video management software | DW Spectrum® IPVMS |
| Image sensor | 5MP 1/2.8” Star-Light Plus CMOS |
|---|---|
| Test Monitor Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total pixels | 2592 (H) × 1944 (V) |
|---|
