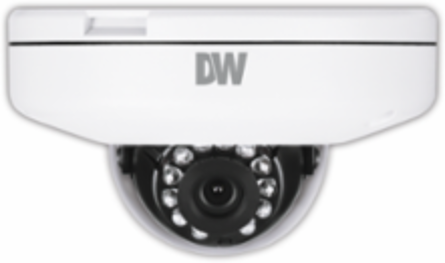

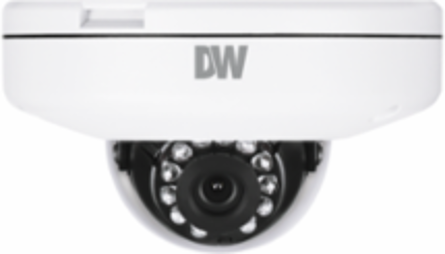

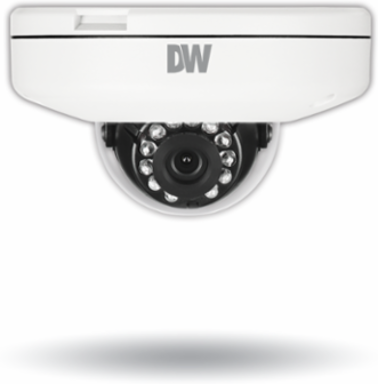

Digital Watchdog DWC-MF5Wi4TWDMP MEGApix 4MP Ultra Low-Profile Vandal Dome IP Camera, 4.0mm Lens, IP66
- MPN: DWC-MF5Wi4TWDMP
- UPC: 812226032440
- PPN: DWD-DWC-MF5Wi4TWDMP
CAD
$771.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The MEGApix 4MP ultra low-profile vandal dome IP camera by Digital Watchdog is engineered to deliver high-quality surveillance in a robust, compact design. Featuring a 4MP 1/2.8 CMOS image sensor and a fixed 4.0mm lens, this camera ensures exceptional clarity with resolutions up to 2560x1440, while its advanced Smart DNRTM technology minimizes noise for clear images even in low-light conditions. With an IP66 rating for dust and water resistance, this camera is built to withstand harsh environments, making it ideal for outdoor use. The integrated Smart IRTM technology provides effective night vision up to 50 feet, ensuring reliable monitoring around the clock. Additionally, its vandal-resistant housing and IK 10-rated impact protection guarantee durability, making it a smart choice for security applications where both performance and resilience are paramount.
Features
- 4MP 1/2.8" image sensor
- Star-Light Plus™ color in near-total darkness technology
- 4.0mm fixed lens
- DMP integration
- 50' Smart IR™ with intelligent camera sync
- Ultra low-profile vandal dome camera housing
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- PoE class 3 and DC12V
- UL listed
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
|---|---|
| IP rating | IP66-rated |
| Operating humidity | 10–90% RH (non–condensing) |
|---|---|
| Other certifications | CE, FCC, RoHS |
MECHANICAL
| Material | Aluminum vandal housing, polycarbonate dome |
|---|---|
| Warranty | 5 year warranty |
| Weight | 0.92 lbs (0.42kg) |
|---|
ELECTRICAL
| Power requirement | DC12V, POE IEEE 802.3af class 2 (adaptor not Included) |
|---|
OPERATIONAL
| Shutter mode | Auto |
|---|---|
| Slow shutter | 1/2 |
| Day / night | Auto |
| Flip | Yes |
| Shutter speed | 1/15 ~ 1/32,000 |
|---|---|
| Auto gain control | Auto |
| Smart DNR™ 3D digital noise reduction | 3D DNR |
LENS
| Focal length | 4.0mm, F2.0 |
|---|---|
| Field of view (FoV) | 82.3° |
| Lens type | Fixed lens |
|---|---|
| IR distance | 50ft range |
NETWORK
| LAN | RJ45 (10/100Base-T) |
|---|---|
| Resolution | 2560x1440, 2.1MP/1080p, VGA |
| Video bitrate | 2Mbps |
| IP | IPv4, IPv6 |
| ONVIF conformance | Yes |
| Video compression type | H.264 |
|---|---|
| Frame rate | 10fps |
| Bitrate control | Smart bitrate control – CVBR |
| Protocol | TCP/IP, UDP, RTSP, NTP, SSL, DNS, DHCP |
| Video management software | DMP® |
| Image sensor | 4MP 1/2.8” CMOS |
|---|
| Total pixels | 2560 (H) x 1440 (V) |
|---|
