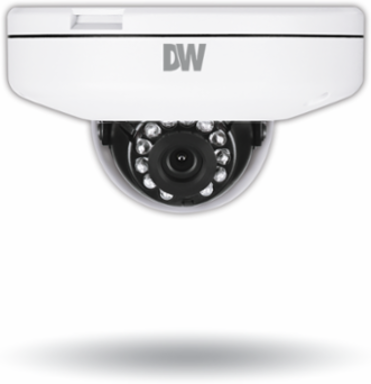

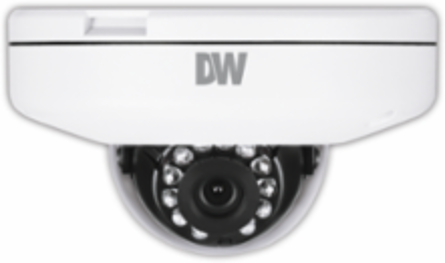

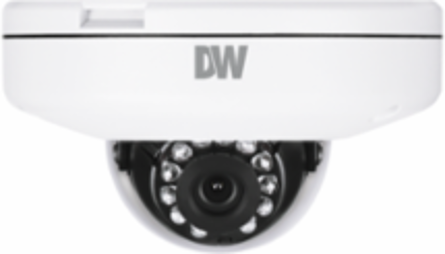

Digital Watchdog DWC-MF2Wi4TW MEGApix® IVA™ 2.1MP Ultra Low-Profile Vandal Dome IP Camera with 2.8mm/4.0mm Lens, IP66, IK10, Color in Near-Total Darkness
Digital Watchdog DWC-MF2Wi4TW MEGApix® IVA™ 2.1MP Ultra Low-Profile Vandal Dome IP Camera with 2.8mm/4.0mm Lens, IP66, IK10, Color in Near-Total Darkness
- MPN: DWC-MF2Wi4TW
- PPN: DWD-DWC-MF2Wi4TW
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$700.82/ EA
Description
Experience the pinnacle of surveillance technology with this ultra low-profile vandal dome IP camera from Digital Watchdog. Designed for both durability and performance, it features a robust aluminum housing and a polycarbonate dome, ensuring it withstands the rigors of any environment while providing exceptional image quality. With its advanced Star-Light Plus™ technology, this camera delivers vibrant color images even in near-total darkness, complemented by a powerful IR range of up to 50 feet.
Equipped with a 2.1MP/1080p image sensor and a choice of 2.8mm or 4.0mm fixed lenses, it offers a wide field of view and true wide dynamic range capabilities, making it ideal for capturing clear footage in challenging lighting conditions. The camera supports multiple video compression formats, including H.265 and H.264, allowing for efficient streaming and recording. Additionally, its built-in intelligent video analytics and programmable privacy zones enhance security by enabling precise monitoring and alerting. With an IP66 rating for dust and water resistance and IK10 impact resistance, this camera is built to last, making it an excellent choice for any surveillance application.
Features
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- 2.8mm fixed lens (DWC-MF2Wi28TW)
- 4.0mm fixed lens (DWC-MF2Wi4TW)
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 50' Smart IR™ with intelligent camera sync
- Ultra low-profile vandal dome camera
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 2 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP66 environmental-rated dust-tight and water-resistant
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IK rating
- IK10 impact-resistant
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IP ratingIP66-rated
MECHANICAL
- Material
- Aluminum vandal housing, polycarbonate dome
- Warranty
- 5 year warranty
Weight0.92 lbs (0.42kg)
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 2 (adaptor not Included)
Power consumptionDC12V - max 4W; PoE - max 5.5W
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- 1/2,1/3,1/5,1/6,1/7.5, 1/10
- Day / night
- Auto, day (color), night (B/W)
- Wide dynamic range (WDR)
- True WDR (D-WDR) On, Off
- Privacy zones
- 16 programmable privacy masks
- Alarm notifications
- Notifications via e-mail, FTP, alarm output and SD card recording
Shutter speed1/30 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR) dB120dB
Mirror and flipYes
Memory slotMicro SD / SDHC / SDXC (card not included)
I/O
- Audio in / out
- 1 input / 1 output
- Alarm in / out
- 1 input / 1 output
Audio compressionG.711
LENS
- Focal length
- 2.8mm, F2.0 (; DWC-MF2Wi28TW), 4.0; mm, F2.6 (; DWC-MF2Wi4TW)
- Field of view (FoV)
- 115° (DWC-MF2Wi28TW), 86; ° (DWC-MF2Wi28TW)
Lens typeFixed lens
IR distance50ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Resolution
- H.265 - 2.1MP/1080p, 720p, VGA, D1, CIF; H.264 - 2.1MP/1080p, 720p, VGA, D1, CIF; MJPEG - 1280x720, 800x600, VGA, 768x432, D1, CIF
- Video bitrate
- 100Kbps ~ 10Mbps, multi-rate for preview and recording
- Streaming capability
- Dual-stream at different rates and resolutions
- Protocol
- TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
- Web viewer
- OS - Windows®, Mac® OS, Linux®, Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®, NOTE - Chrome browser is recommended for IVA configuration.
Video compression typeH.265, H.264, MJPEG
Frame rateUp to 30fps at all resolutions
Bitrate controlMultistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IPIPv4, IPv6
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS
- Image sensor
- 2.1MP/1080p 1/2.8” Star-Light Plus CMOS
- Video output
- Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total pixels1945 (H) × 1109 (V)
