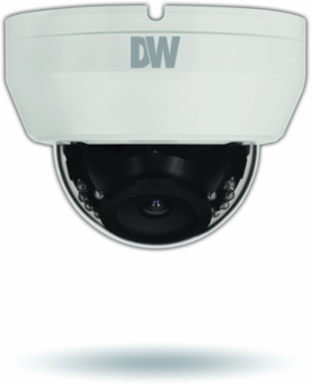

Digital Watchdog DWC-D3563WTIR 5MP Indoor Dome Camera, 2.7-13.5mm Vari-Focal Lens, True WDR, 100ft IR
- MPN: DWC-D3563WTIR
- UPC: 812226030125
- PPN: DWD-DWC-D3563WTIR
CAD
$431.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Experience unparalleled surveillance capabilities with the Star-Light Plus™ UHDoC® 5MP indoor dome camera from Digital Watchdog. This advanced security camera features a vari-focal p-iris lens with a focal length of 2.7 to 13.5mm, ensuring exceptional clarity and detail in every shot, even in challenging lighting conditions. With its innovative Star-Light Plus™ technology, this camera delivers vibrant color images in near-total darkness, making it ideal for around-the-clock monitoring.
Equipped with a 5MP image sensor and true wide dynamic range (WDR), this dome camera excels in environments with varying light levels, providing clear images without distortion. The built-in Smart DNR™ 3D digital noise reduction enhances image quality by minimizing noise, while the programmable privacy zones and motion detection features add an extra layer of security. With a robust construction designed for indoor use, this camera is not only functional but also reliable, ensuring peace of mind for your surveillance needs.
Features
- Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
- Star-Light Plus™ color in near-total darkness technology
- 1/2.8" image sensor
- 5MP at 20fps, 4MP at real-time 30fps
- 2.7~13.5mm vari-focal p-iris lens
- True wide dynamic range (WDR)
- OSD control via coaxial (UTC)
- 100' Smart IR™ with intelligent camera sync.
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- De-Fog™ extreme weather image compensation
- Auto-sensing 24VAC/12VDC with line lock
- Easy icon-driven OSD menu with built-in joystick
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- Auto white balance (AWB)
- 1 alarm output
- UL listed
- NDAA compliant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- Other certifications
- FCC, CE, ROHS
Operating humidity10–90% RH (non–condensing)
MECHANICAL
- Material
- Plastic indoor housing, polycarbonate dome
- Weight
- 0.66 lbs (0.3g)
Dimensions4.72" x 3.51" (120 x 89.4 mm)
ELECTRICAL
- Power requirement
- DC12V/AC24V dual voltage
OPERATIONAL
- Shutter mode
- Auto
- Backlight
- Yes
- Wide dynamic range (WDR)
- True WDR, off, on
- Smart DNR™ 3D digital noise reduction
- 3D/2D DNR
- Day / night
- Auto, day (color), night (B/W)
- Auto gain control
- Max 72dB
- Privacy zones
- Yes
- Gamma
- 0.45
- RS485 / UTP built-in
- Pelco D / UTC
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off – x32
Wide dynamic range (WDR) dB120dB
White balanceYes
Mirror / flipYes
Motion detectionYes
SharpnessYes
De-fogYes
I/O
- Alarm output
- 1 alarm output
LENS
- Focal length
- 2.7 ~ 13.5mm
- Field of view (FoV)
- 102 ~ 31.4
Lens typeVari-focal p-iris lens
IR distance100ft range
- Image sensor
- 5MP 1/2.8" CMOS
- Scanning system
- Progressive scan
- Signal technology
- Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
- Resolution
- 2592 x 1944 (5MP)
- Video output
- HD-Analog and HD-TVI - 5MP/1944p @ 20fps and 12.5fps; HD-Analog, HD-TVI and HD-CVI - 4MP/1440p @ 30fps
Active pixels2608 (H) x 1960 (V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
2nd Video outputCVBS output for video testing
