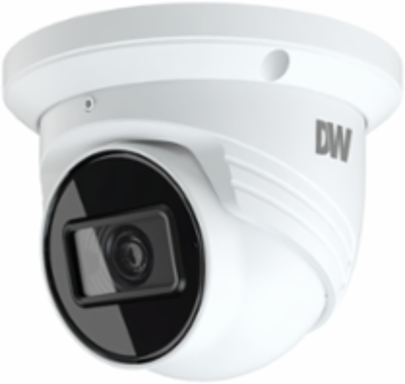

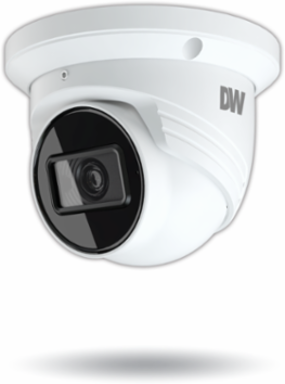

Digital Watchdog DWC-MT95Wi28TW MEGApix 5MP Turret IP Camera, 2.8mm Lens, 100ft IR, IP67 Rated
- MPN: DWC-MT95Wi28TW
- UPC: 812226034680
- PPN: DWD-DWC-MT95Wi28TW
CAD
$538.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Elevate your surveillance capabilities with the MEGApix 5MP turret IP camera from Digital Watchdog, designed to deliver exceptional image quality and advanced analytics. Featuring both 2.8mm and 3.6mm fixed lens options, this camera captures stunning 5MP resolution video at real-time frame rates of up to 30fps, ensuring every detail is visible. With its robust IP67 rating, it is dust-tight and waterproof, making it suitable for outdoor installations in various weather conditions, while the IK 10 impact resistance ensures durability against physical damage.
Equipped with Smart IR technology, this camera provides clear night vision up to 100 feet, and its True Wide Dynamic Range enhances image clarity in challenging lighting conditions. The camera also includes sophisticated video analytics capabilities, such as line crossing and perimeter intrusion detection, ensuring proactive monitoring of your premises. With features like dual-streaming, multiple video codecs, and easy integration via ONVIF compliance, this IP camera is an ideal choice for both residential and commercial security applications.
Features
- 5MP 1/2.7” image sensor at real-time 30fps
- 2.8mm fixed lens (DWC-MT95Wi28TW)
- 3.6mm fixed lens (DWC-MT95Wi36TW)
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 100ft range Smart IR™
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog™ extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Audio input through built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -22°F ~ 140°F (-30°C ~ 60°C)
- IP rating
- IP67-rated
- Other certifications
- CE, FCC, RoHS
Operating humidity95% RH (non–condensing)
IK ratingIK 10 impact-resistant
MECHANICAL
- Material
- Metal turret housing
- Weight
- 1.01 lb (0.46 kg)
Dimensions4.66" x 3.58" (118.6 x 91 mm)
Warranty5 year warranty
ELECTRICAL
- Power requirement
- DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included)
Power consumption7W
OPERATIONAL
- Shutter mode
- Auto, manual
- Auto gain control
- Auto
- Smart DNR™ 3D digital noise reduction
- 3D DNR
- Wide dynamic range (WDR) dB
- 120dB
- Camera analytics
- Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects)
- Memory slot
- Micro SD / SDHC / SDXC (card not Included)
Shutter speed1/30s ~ 1/100000s
Day / nightAuto, day (color), night (B/W), schedule
Wide dynamic range (WDR)True WDR low, middle, high
Privacy zone4 programmable privacy masks
Alarm notificationsNotifications via e-mail or FTP server
I/O
- Audio in/out
- 1 audio input and 1 microphone built-in / 1 output
Audio compressionG.711A / U
LENS
- Focal length
- 2.8mm, F1.6 (DWC-MT94Wi28), 3.6mm, F1.6 (DWC-MT94Wi36)
- Field of view (FoV)
- 98.5°; (DWC-MTT4Wi28); 81.4°; ; (DWC-MTT4Wi36);
Lens typeFixed lens
IR distance100ft Range
NETWORK
- LAN
- 802.3 compliance 10/100 LAN
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth)
- IP
- IPv4, IPv6
- Security
- IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL
- Web viewer
- OS - Windows® Browser - Internet Explorer
Video compression typeH.265. H.264, MJPEG
Video bitrate64 Kbps ~ 8 Mbps
Streaming capabilityDual-stream at different rates and resolutions
ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS
- Image sensor
- 5MP 1/2.7” CMOS
- S/N ratio
- 50dB
Total pixels2592 (H) x 1944 (V)
