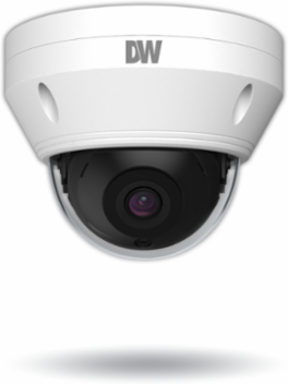

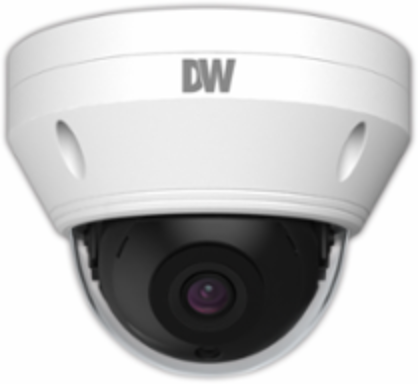

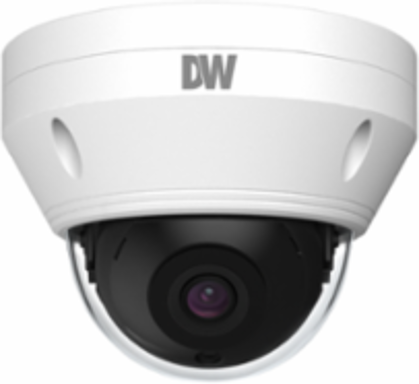

Digital Watchdog DWC-MV95Wi36TW MEGApix 5MP Vandal Dome IP Camera, 2.8mm & 3.6mm Lens, IP67, IK10
Digital Watchdog DWC-MV95Wi36TW MEGApix 5MP Vandal Dome IP Camera, 2.8mm & 3.6mm Lens, IP67, IK10
- MPN: DWC-MV95Wi36TW
- PPN: DWD-DWC-MV95Wi36TW
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$554.10/ EA
Description
Experience unparalleled surveillance capabilities with the MEGApix 5MP vandal dome IP camera from Digital Watchdog. This robust camera features a choice of 2.8mm or 3.6mm fixed lenses, providing exceptional clarity with a 5MP image sensor that delivers real-time video at 30 frames per second. Designed for resilience, it boasts an IK10 impact-resistant rating and is IP67 rated, ensuring reliable performance in various environmental conditions.
Equipped with advanced features like Smart DNR™ for noise reduction, true day/night functionality with a mechanical IR cut filter, and intelligent video analytics for line crossing and perimeter intrusion detection, this camera is perfect for enhancing security in any setting. With dual-stream capabilities and multiple video compression options, it offers flexible integration into your existing surveillance system while maintaining high-quality video output.
Features
- 5MP 1/2.7” image sensor at real-time 30fps
- 2.8mm fixed lens (DWC-MV95Wi28TW)
- 3.6mm fixed lens (DWC-MV95Wi36TW)
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 100ft range Smart IR™
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog™ extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Audio input through built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -22°F ~ 140°F (-30°C ~ 60°C)
- IP rating
- IP67-rated
- Other certifications
- CE, FCC, RoHS
Operating humidity95% RH (non–condensing)
IK ratingIK10 impact-resistant
MECHANICAL
- Material
- Metal vandal housing, polycarbonate dome
- Weight
- 1.43 lb (0.65 kg)
Dimensions4.59" x 3.54" (116.6x 90 mm)
Warranty5 year warranty
ELECTRICAL
- Power requirement
- DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included)
Power consumption6W
OPERATIONAL
- Shutter mode
- Auto, manual
- Auto gain control
- Auto
- Smart DNR™ 3D digital noise reduction
- 3D DNR
- Wide dynamic range (WDR) dB
- 120dB
- Camera analytics
- Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects)
- Memory slot
- Micro SD / SDHC / SDXC (card not Included)
Shutter speed1/30s ~ 1/100000s
Day / nightAuto, day (color), night (B/W), schedule
Wide dynamic range (WDR)True WDR low, middle, high
Privacy zone4 programmable privacy masks
Alarm notificationsNotifications via e-mail or FTP server
I/O
- Audio in/out
- 1 audio input, 1 microphone built-in /1 output
- Alarm in/out
- 1 input / 1 output
Audio compressionG.711A / U
LENS
- Focal length
- 2.8mm, F1.6 (DWC-MV94Wi28T), 3.6mm, F1.6 (DWC-MV94Wi36T)
- Field of view (FoV)
- 98.5° (DWC-MV94Wi28T), 81.4; ° (DWC-MV94Wi36T)
Lens typeFixed lens
IR distance100ft Range
NETWORK
- LAN
- 802.3 compliance 10/100 LAN
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth)
- IP
- IPv4, IPv6
- Security
- IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL
- Web viewer
- OS - Windows® Browser - Internet Explorer
Video compression typeH.265. H.264, MJPEG
Video bitrate64 Kbps ~ 8 Mbps
Streaming capabilityDual-stream at different rates and resolutions
ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS
- Image sensor
- 5MP 1/2.7” CMOS
- S/N ratio
- 50dB
Total pixels2592(H) X 1944 (V)
