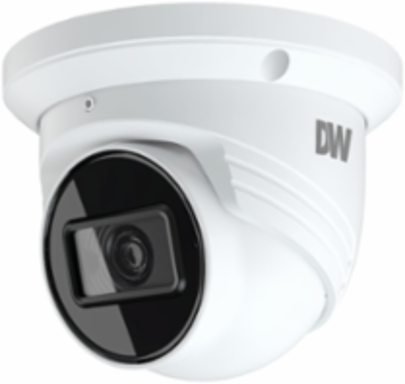

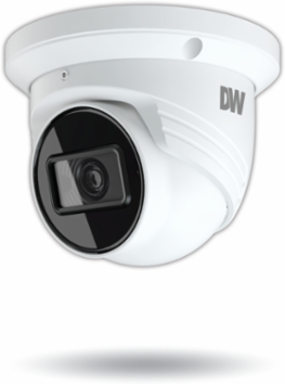

Digital Watchdog DWC-MT95Wi36TW MEGApix 5MP Turret IP Camera, 2.8mm & 3.6mm Lens, IP67, IR 100ft
Digital Watchdog DWC-MT95Wi36TW MEGApix 5MP Turret IP Camera, 2.8mm & 3.6mm Lens, IP67, IR 100ft
- MPN: DWC-MT95Wi36TW
- PPN: DWD-DWC-MT95Wi36TW
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$518.85/ EA
Description
The MEGApix 5MP turret IP camera from Digital Watchdog offers advanced surveillance capabilities in a compact and robust design. With options for 2.8mm and 3.6mm fixed lenses, this camera delivers high-resolution imaging with a total pixel count of 2592 x 1944, ensuring clear visuals in various lighting conditions. Its impressive features include Smart IR technology for night vision up to 100 feet, True Wide Dynamic Range (WDR) for balanced exposure in challenging lighting, and intelligent video analytics for motion detection and object classification. Designed to withstand harsh environments, the camera is IK10-rated for impact resistance and IP67-rated for dust and water protection, making it an ideal choice for both indoor and outdoor installations.
Features
- 5MP 1/2.7” image sensor at real-time 30fps
- 2.8mm fixed lens (DWC-MT95Wi28TW)
- 3.6mm fixed lens (DWC-MT95Wi36TW)
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 100ft range Smart IR™
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog™ extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Audio input through built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -22°F ~ 140°F (-30°C ~ 60°C)
- IP rating
- IP67-rated
- Other certifications
- CE, FCC, RoHS
Operating humidity95% RH (non–condensing)
IK ratingIK 10 impact-resistant
MECHANICAL
- Material
- Metal turret housing
- Weight
- 1.01 lb (0.46 kg)
Dimensions4.66" x 3.58" (118.6 x 91 mm)
Warranty5 year warranty
ELECTRICAL
- Power requirement
- DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included)
Power consumption7W
OPERATIONAL
- Shutter mode
- Auto, manual
- Auto gain control
- Auto
- Smart DNR™ 3D digital noise reduction
- 3D DNR
- Wide dynamic range (WDR) dB
- 120dB
- Camera analytics
- Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects)
- Memory slot
- Micro SD / SDHC / SDXC (card not Included)
Shutter speed1/30s ~ 1/100000s
Day / nightAuto, day (color), night (B/W), schedule
Wide dynamic range (WDR)True WDR low, middle, high
Privacy zone4 programmable privacy masks
Alarm notificationsNotifications via e-mail or FTP server
I/O
- Audio in/out
- 1 audio input and 1 microphone built-in / 1 output
Audio compressionG.711A / U
LENS
- Focal length
- 2.8mm, F1.6 (DWC-MT94Wi28), 3.6mm, F1.6 (DWC-MT94Wi36)
- Field of view (FoV)
- 98.5°; (DWC-MTT4Wi28); 81.4°; ; (DWC-MTT4Wi36);
Lens typeFixed lens
IR distance100ft Range
NETWORK
- LAN
- 802.3 compliance 10/100 LAN
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth)
- IP
- IPv4, IPv6
- Security
- IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL
- Web viewer
- OS - Windows® Browser - Internet Explorer
Video compression typeH.265. H.264, MJPEG
Video bitrate64 Kbps ~ 8 Mbps
Streaming capabilityDual-stream at different rates and resolutions
ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS
- Image sensor
- 5MP 1/2.7” CMOS
- S/N ratio
- 50dB
Total pixels2592 (H) x 1944 (V)
