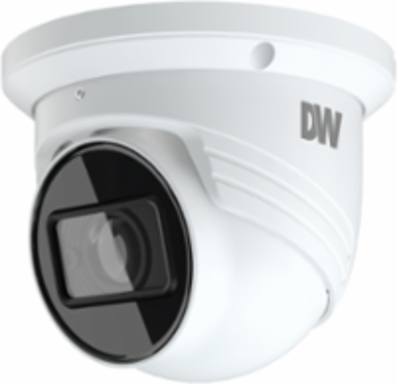

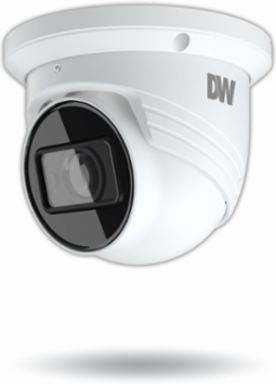

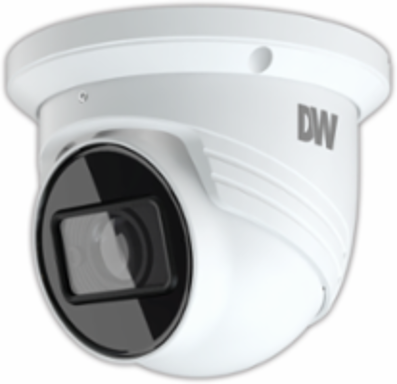

Digital Watchdog DWC-MT95WiATW MEGApix 5MP Turret IP Camera with 2.8~12mm Lens, IP67, 30fps
Digital Watchdog DWC-MT95WiATW MEGApix 5MP Turret IP Camera with 2.8~12mm Lens, IP67, 30fps
- MPN: DWC-MT95WiATW
- PPN: DWD-DWC-MT95WiATW
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$773.77/ EA
Description
The MEGApix 5MP turret IP camera from Digital Watchdog is engineered for high-performance surveillance, featuring a versatile 2.8 to 12mm vari-focal lens with motorized zoom and autofocus capabilities. This advanced camera excels in various lighting conditions, thanks to its True Wide Dynamic Range (WDR) and Smart DNR™ 3D digital noise reduction, ensuring clear and detailed images at all times. With robust analytics such as line crossing, perimeter intrusion, and video tampering detection, it offers comprehensive security solutions while maintaining user-friendly operation through its built-in web server and compatibility with DW Spectrum® IPVMS. Designed for durability, this camera is IP67-rated for dust and water resistance and IK10 impact-resistant, making it suitable for both indoor and outdoor environments.
Features
- 5MP 1/2.7” image sensor at real-time 30fps
- 2.8~12mm vari-focal lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 164ft range Smart IR™
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog™ extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Audio input through built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -22°F ~ 140°F (-30°C ~ 60°C)
- IP rating
- IP67-rated
- Other certifications
- CE, FCC, RoHS
Operating humidity95% RH (non–condensing)
IK ratingIK10 impact-resistant
MECHANICAL
- Material
- Metal turret housing
- Weight
- 1.45 lb (0.66 kg)
Dimensions5.16" x 4.13" (131.1 x 105 mm)
Warranty5 year warranty
ELECTRICAL
- Power requirement
- DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included).
Power consumption9W
OPERATIONAL
- Shutter mode
- Auto, manual
- Auto gain control
- Auto
- Smart DNR™ 3D digital noise reduction
- 3D DNR
- Wide dynamic range (WDR) dB
- 120dB
- Camera analytics
- Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects)
- Memory slot
- Micro SD / SDHC / SDXC (card not Included)
Shutter speed1/30s ~ 1/100000s
Day / nightAuto, day (color), night (B/W), schedule
Wide dynamic range (WDR)True WDR low, middle, high
Privacy zone4 programmable privacy masks
Alarm notificationsNotifications via e-mail or FTP server
I/O
- Audio in/out
- 1 audio input, 1 microphone built-in
Audio compressionG.711A / U
LENS
- Focal length
- 2.8~12mm, F1.4
- Field of view (FoV)
- 95.1° ~ 30°
Lens typeVari-focal lens with motorized-zoom and auto-focus
IR distance164ft range
NETWORK
- LAN
- 802.3 compliance 10/100 LAN
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth)
- IP
- IPv4, IPv6
- Security
- IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL
- Web viewer
- OS - Windows® Browser - Internet Explorer
Video compression typeH.265. H.264, MJPEG
Video bitrate64 Kbps ~ 8 Mbps
Streaming capabilityDual-stream at different rates and resolutions
ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS
- Image sensor
- 5MP 1/2.7” CMOS
- S/N ratio
- 50dB
Total pixels2592 (H) X 1944 (V)
