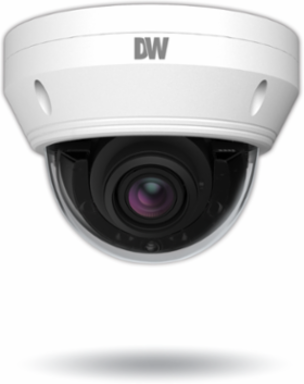

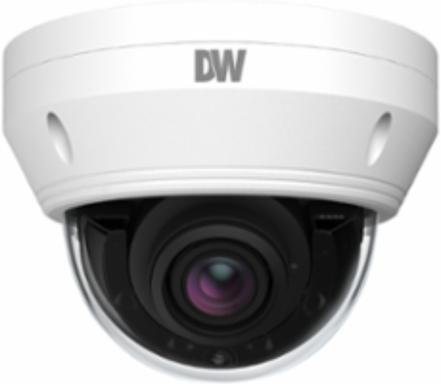

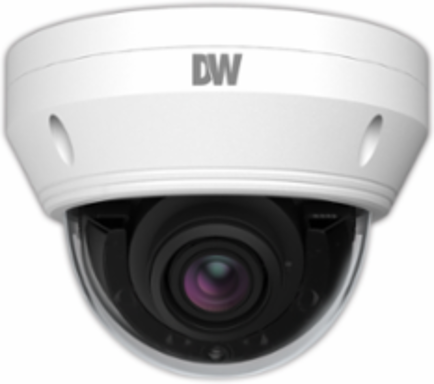

Digital Watchdog DWC-MV95WiATW MEGApix 5MP Vandal Dome IP Camera, 2.8~12mm Vari-Focal Lens, IP67, IK10
Digital Watchdog DWC-MV95WiATW MEGApix 5MP Vandal Dome IP Camera, 2.8~12mm Vari-Focal Lens, IP67, IK10
- MPN: DWC-MV95WiATW
- PPN: DWD-DWC-MV95WiATW
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$858.20/ EA
Description
Experience unparalleled surveillance capabilities with the MEGApix 5MP vandal dome IP camera, designed by Digital Watchdog. This advanced security solution features a versatile 2.8~12mm vari-focal lens with remote auto-focus, ensuring precise image capture across various environments. With its robust IK10 impact-resistant and IP67 waterproof rating, this camera is built to withstand harsh conditions while delivering high-quality video at real-time 30fps, supported by cutting-edge features like Smart DNR™ for superior noise reduction and True Wide Dynamic Range for clear images in challenging lighting.
Equipped with intelligent video analytics, including line crossing and perimeter intrusion detection, this camera not only enhances security but also allows for customizable privacy zones and motion detection. Seamlessly integrating into existing systems, it supports multiple codecs and dual-streaming capabilities, making it a versatile choice for any surveillance setup. With a five-year warranty and a commitment to performance, the MEGApix camera is a reliable choice for safeguarding your premises.
Features
- 5MP 1/2.7” image sensor at real-time 30fps
- 2.8~12mm vari-focal lens with motorized zoom and auto-focus
- True Wide Dynamic Range (WDR)
- Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
- 164ft range Smart IR™
- Object classification video analytics
- Line crossing video analytics
- Perimeter intrusion video analytics
- Video tampering with scene change detection video analytics
- Video tampering with video blur detection video analytics
- Video tampering with abnormal color detection video analytics
- Smart DNR™ 3D digital noise reduction
- True day/night with mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Backlight compensation (BLC)
- De-Fog™ extreme weather image compensation
- Auto white balance (AWB)
- Motion detection
- Two-way audio with built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Alarm sensor input
- Relay output
- Web server built-in
- PoE class 3 and DC12V
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -22°F ~ 140°F (-30°C ~ 60°C)
- IP rating
- IP67-rated
- Other certifications
- CE, FCC, RoHS
Operating humidity95% RH (non–condensing)
IK ratingIK10 impact-resistant
MECHANICAL
- Material
- Metal vandal housing, polycarbonate dome
- Weight
- 1.98 lb (0.9 kg)
Dimensions5.43" x 3.93" (138 x 100 mm)
Warranty5 year warranty
ELECTRICAL
- Power requirement
- DC 12V, PoE IEEE 802.3af Class 3. (Adapter not included)
Power consumption9W
OPERATIONAL
- Shutter mode
- Auto, manual
- Auto gain control
- Auto
- Smart DNR™ 3D digital noise reduction
- 3D DNR
- Wide dynamic range (WDR) dB
- 120dB
- Camera analytics
- Line crossing, perimeter intrusion, video tampering detection (scene change, video blur, abnormal color detection), object classification (differentiate humans from objects)
- Memory slot
- Micro SD / SDHC / SDXC (card not Included)
Shutter speed1/30s ~ 1/100000s
Day / nightAuto, day (color), night (B/W), schedule
Wide dynamic range (WDR)True WDR low, middle, high
Privacy zone4 programmable privacy masks
Alarm notificationsNotifications via e-mail or FTP server
I/O
- Audio in/out
- 1 audin input and 1 microphone built-in / 1 output
- Alarm in/out
- 1 input / 1 output
Audio compressionG.711A / U
LENS
- Focal length
- 2.8~12mm, F1.4
- Field of view (FoV)
- 95.1° ~ 30°
Lens typeVari-focal lens with motorized-zoom and auto-focus
IR distance164ft range
NETWORK
- LAN
- 802.3 compliance 10/100 LAN
- Frame rate
- Up to 30fps at all resolutions
- Bitrate control
- Multi-streaming CBR/VBR at H.264/ H.265 (controllable frame rate and bandwidth)
- IP
- IPv4, IPv6
- Security
- IP filtering, MAC filtering, authentication (ID/PW), SSL/TSL
- Web viewer
- OS - Windows® Browser - Internet Explorer
Video compression typeH.265. H.264, MJPEG
Video bitrate64 Kbps ~ 8 Mbps
Streaming capabilityDual-stream at different rates and resolutions
ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS
- Image sensor
- 5MP 1/2.7” CMOS
- S/N ratio
- 50dB
Total pixels2592 (H) X 1944 (V)
