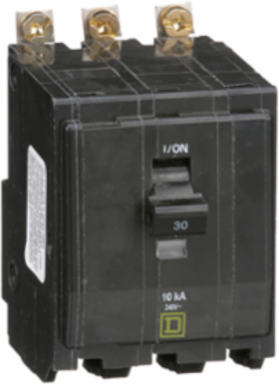

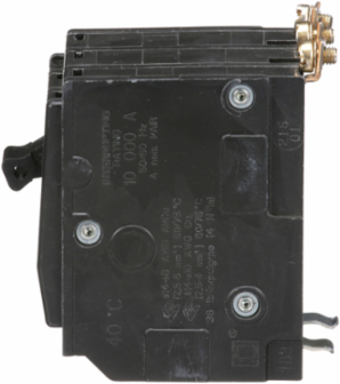

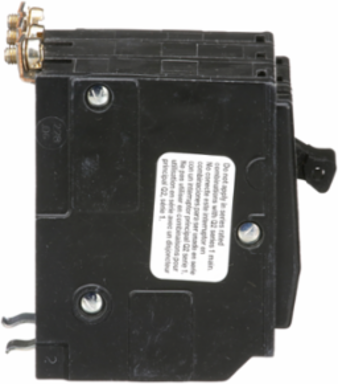

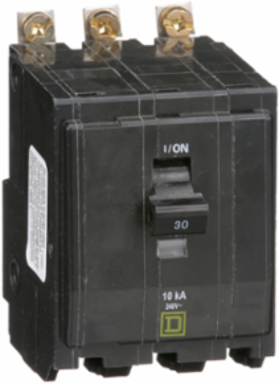

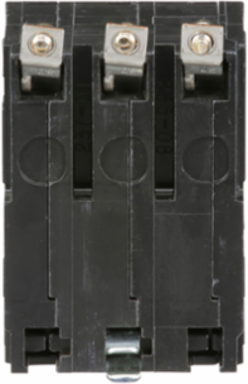

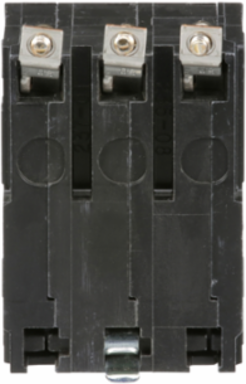

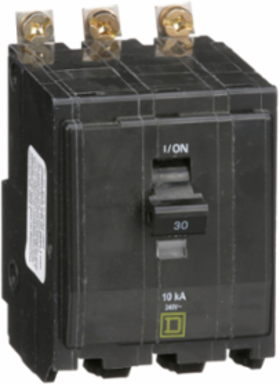

Square D QOB330 Mini Circuit Breaker 30A 3 Pole 120/240VAC Bolt-On Mount 10kA
- MPN: QOB330
- UPC: 785901417125
- PPN: SCH-QOB330
CAD
$346.60
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mini Circuit Breaker 30A 3 Pole 120/240VAC Bolt-On Mount 10kA
Features
- The Schneider QOB330 is a "Bolt-On" version of the legendary Square D QO circuit breaker. Unlike standard plug-on breakers used in homes, this unit features a mounting screw that physically secures it to the bus bar of a Square D NQ or NQOD panelboard. This bolt-on connection is the industry standard for Canadian commercial and industrial facilities because it resists loosening due to vibration or heavy thermal cycling.
- This is a 3-Pole, 30-Amp breaker, designed to provide simultaneous overcurrent protection for all three phases of a 3-phase electrical system. In Canada, it is most commonly used to protect: 3-Phase Motors (up to approx. 7.5 HP at 208V) , Commercial HVAC Units and Exhaust Fans , Industrial Kitchen Equipment (ovens, fryers) , Small Machine Tools in workshops or manufacturing plants.
- The QOB330 is rated for 240V AC. It is the go-to choice for 3-phase branch circuits in 208Y/120V systems, which are the most prevalent power configurations for Canadian office buildings, retail spaces, and light industrial units.
- Equipped with the patented Visi-TripTM indicator, this breaker makes troubleshooting simple. When the breaker trips, a highly visible red flag snaps into the window on the face of the breaker. This allows maintenance staff to immediately identify which 3-phase circuit has faulted among dozens of others in a dark electrical room.
- The internal contacts are designed to snap open or closed at high speed, regardless of how fast the handle is moved. This "Quick-Make/Quick-Break" action reduces internal arcing, which preserves the life of the contacts and ensures the breaker can reliably interrupt its full rated current over many years of service.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico

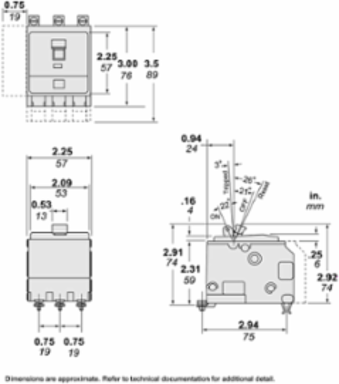

Depth74 mm
Complementary Attributes
- Rated Current
- 30 A
Line Rated Current30 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.0679952336
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.1733874451
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Electrical Connection
- pressure plate
- Mounting Mode
- bolt-on
- Number Of Spaces Required
- 3
- Product Or Component Type
- miniature circuit-breaker
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 20 kg CO2 eq.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 24.8784
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Width Nominal
- 57 mm
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 371.95 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The Distribution Phase [A4]0.0479902683, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0000929104, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]17 kg CO2 eq., 17.3042434783
Local Publishable Date2026-04-14
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2534
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationCommercial
Awg Gauge14 AWG...8 AWG copper or aluminium
Circuit Breaker Typestandard
Energy Efficiency OptimizedFalse
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Software VersionEIME v5.9.1
Tightening Torque4-4 N.m
Pep CodeENVPEP2111016EN
Pep Verification Date2021-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Height Nominal76 mm
[Ue] Rated Operational Voltage240 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Halogene Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 19.5937093357
- Environmental Disclosure
- ENVPEP2111016EN
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2111016EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2021-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQO
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
