Square D QOB325 Mini Circuit Breaker 25A 3 Pole 120/240V AC 10kA Bolt-On Mount
- MPN: QOB325
- UPC: 785901368311
- PPN: SCH-QOB325
CAD
$370.66
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

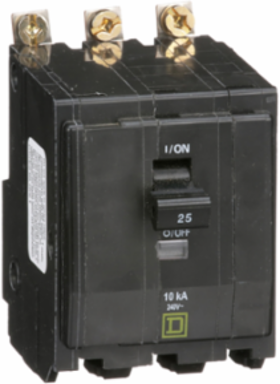

Mini Circuit Breaker 25A 3 Pole 120/240V AC 10kA Bolt-On Mount
Documentation & Downloads
Specifications
Additional
- Current Rating
- 25 A
- Breaking Capacity
- 10 kA 120/240 V AC 50/60 Hz
- Mounting Type
- Bolt-on
- Circuit Breaker Type
- Standard
- Tightening Torque
- 4-4 N.m
- Width
- 57 mm
- Net Weight
- 0.372 kg
- Ambient Temperature Rating
- 40 6C
- Toxic Heavy Metal Free
- Yes
- Halogen Content
- Halogen free product
- Product Type
- Miniature Circuit-Breaker
Voltage120/240 V AC
Number of Poles3
Electrical ConnectionPressure plate
Wire SizeAWG 14...AWG 8 copper or aluminum
Height76 mm
Depth74 mm
CertificationsUL Listed, CSA Certified
Mercury FreeYes
RoHS ComplianceCompliant with Exemptions
Sustainable Offer StatusGreen Premium product
