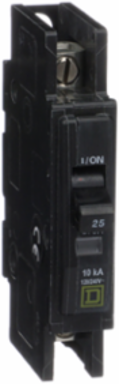

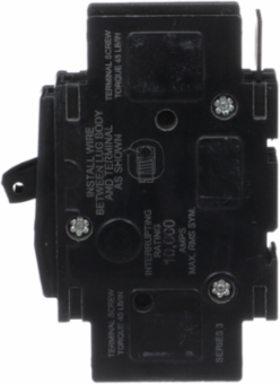

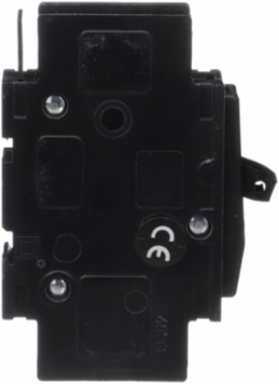

Square D QOU125B Mini Circuit Breaker 25A 1 Pole 120/240V AC 10kA Bulk Pack
Square D QOU125B Mini Circuit Breaker 25A 1 Pole 120/240V AC 10kA Bulk Pack
- MPN: QOU125B
- UPC: 785901324263
- PPN: SCH-QOU125B
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$120.18/ EA
Description
QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This one pole QOU miniature circuit breaker is rated as 25A, 120/240 VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 0.75 inch and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified. This miniature circuit breaker is bulk packaged.
Specifications
Environment
- Product Certifications
- IEC || UL listed || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Circularity ProfileN/A
Mercury FreeYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Height
- 4.05 in
- Tightening Torque
- 45-45 lbf.in AWG 14...AWG 2)
- Awg Gauge
- AWG 14...AWG 2 aluminum/copper
- Electrical Connection
- slotted box lugs, line side || slotted box lugs, load side
- [Ue] Rated Operational Voltage
- 120/240 V AC || 120 V AC || 48 V DC
Mounting Modeunit mount
[In] Rated Current25 A
Width0.75 in
Depth2.95 in
Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- standard
- Type Of Packing
- bulk
Range Of ProductQOU
Product Or Component Typeminiature circuit-breaker
