Schneider Electric LC1SKGC200U7 TeSys SK Mini Contactor 2P 5A 690V AC with 240V AC Coil
Schneider Electric LC1SKGC200U7 TeSys SK Mini Contactor 2P 5A 690V AC with 240V AC Coil
- MPN: LC1SKGC200U7
- PPN: SCH-LC1SKGC200U7
- UNSPSC: 39121529
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$219.95/ EA
Description

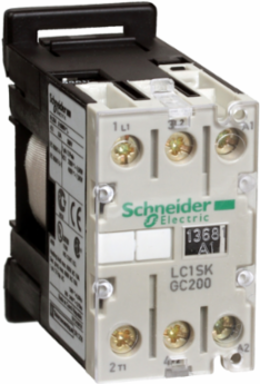

TeSys SKGC mini-contactor, 2 poles (2NO), for non-inductive load applications up to 20A/690V AC-1, and for 1-phase motor control applications up to 5A/690V AC-3. It provides a 240V 50/60Hz AC control circuit, a transparent protective cover to prevent front face access, connection by screw terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. For use in modular panels, compact (27mm width), clipping on 35mm DIN rail. Location available to insert a suppressor module LA4SK (to be ordered separately). Multi standards certified (IEC, UL, CSA).
Features
- It is desingned with transparent protective cover at front for double security
- Good adaptability: possible to insert a suppressor module
- High durability & stable performance: up to 1200 cycles/hour for operating rates
- Reliable in high and low temperature environment
- Modularity design and compact size for easy maintenance, save time and space on installation
- Wide application with multi standards certifications
Specifications
Conformance Attributes
- Product Certifications
- CB Scheme, CE, UKCA, EAC, cULus
StandardsEN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1
Complementary Attributes
- Control Circuit Voltage Limits
- operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C), drop-out: 0.2...0.75 Uc at 50/60 Hz (at <55 °C)
- Rated Breaking Capacity
- 40 A at <= 400 V conforming to NF C 63-110, 40 A at <= 400 V conforming to IEC 60947
- Maximum Operating Rate
- 1200 cyc/h
IRMS Rated Making Capacity50 A AC conforming to NF C 63-110, 50 A AC conforming to IEC 60947
Control Circuit TypeAC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Contactor Application
- motor control, resistive load
- Protective Treatment
- TC IEC 60068, TC DIN 50015
- Ie Rated Operational Current2
- 5 A at <= 400 V AC AC-3, 20 A (at <50 °C) AC AC-1
- Carbon Footprint Of The Distribution Phase A4
- 0.05132471286393272, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.007904081068694103, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 51 kg CO2 eq., 51.34125131495782
- Connections Terminals3
- connector 1 1.5-6 mm²solid, connector 2 1.5-4 mm²solid, connector 1 0.5-6 mm²flexible without cable end, connector 2 0.35-2.5 mm²flexible without cable end, connector 1 0.35-6 mm²flexible with cable end, connector 2 0.35-1.5 mm²flexible with cable end
- Ui Rated Insulation Voltage5
- power circuit 690 V BS 5424, power circuit 690 V IEC 60947, power circuit 690 V UL 508, power circuit 690 V VDE 0110 group C, power circuit 690 V CSA C22.2 No 14
- Local Publishable Date
- 2025-02-26
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Function Option
- Standard
- Average Impedance
- 4 mOhm - Ith 20 A 50 Hz for power circuit
- Device Short Name
- LC1SKGC
- Heat Dissipation
- 1.4-1.4 W 50/60 Hz
- Inrush Power In VA
- 16-16 VA 50/60 Hz (at 20 °C)
- Mounting Support
- rail
- Pole Contact Composition
- 2 NO
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- TeSys
- Returnability
- No
- Tightening Torque
- power circuit 0.8 N.m connector pozidriv No 1
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ith Conventional Free Air Thermal Current2
- 20 A (at 55 °C) for power circuit
- Ue Rated Operational Voltage2
- power circuit 690 V AC 50/60 Hz
- Stocking Flag
- Y
- Pep Code
- ENVPEP1503003
- Pep Verification Date
- 2025-11-21
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Product Name
- TeSys SK
- Ith Conventional Free Air Thermal Current5
- 20 A (at 55 °C) for power circuit
- Ue Rated Operational Voltage5
- power circuit 690 V AC 50/60 Hz
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Operating Time6...8 ms coil de-energisation and NO opening, 7...14 ms coil energisation and NO closing
Utilisation CategoryAC-3, AC-1
Ui Rated Insulation Voltage2power circuit 690 V BS 5424, power circuit 690 V IEC 60947, power circuit 690 V UL 508, power circuit 690 V VDE 0110 group C, power circuit 690 V CSA C22.2 No 14
Carbon Footprint Of The End Of Life Phase C1 To C40.2 kg CO2 eq., 0.21846388581500262
Carbon Footprint Of The Manufacturing Phase A1 To A30.7 kg CO2 eq., 0.7152454472070074
Connections Terminalsconnector 1 1.5-6 mm²solid, connector 2 1.5-4 mm²solid, connector 1 0.5-6 mm²flexible without cable end, connector 2 0.35-2.5 mm²flexible without cable end, connector 1 0.35-6 mm²flexible with cable end
Ie Rated Operational Current55 A at <= 400 V AC AC-3, 20 A (at <50 °C) AC AC-1
Local Data StatusPublishable
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1503003
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Associated Fuse Rating20 A gI at <= 440 V for power circuit
Compatibility CodeLC1SKGC
Energy Efficiency OptimizedFalse
Hold In Power Consumption In VA4.2-4.2 VA 50/60 Hz (at 20 °C)
Mechanical Durability10 Mcycles
Package Weight Lbs128.000 g
Poles Description2P
Product Or Component Typemini contactor
Range Of ProductTeSys SK
Sustainable PackagingYes
Total Lifecycle Carbon Footprint52 kg CO2 eq.
Icw Rated Short Time Withstand Current240 A 55 °C for power circuit
Uc Control Circuit Voltage2240 V AC 50/60 Hz
Medium DescMini contactor, TeSys SK, 2P(2NO), AC-3, 690V 5A, 240V AC coil
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; France, FR
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; Europe, EU-27
Global Commercial StatusCommercialised
Icw Rated Short Time Withstand Current540 A 55 °C for power circuit
Uc Control Circuit Voltage5240 V AC 50/60 Hz
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 52.334189441912464
- Ambient Air Temperature For Storage
- -50-70 °C
- Environmental Disclosure
- ENVPEP1503003
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1503003
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Mercury FreeYes
Ambient Air Temperature For Operation-20-50 °C
Circularity ProfileENVEOLI1503003
IP Degree Of ProtectionIP2X VDE 0106
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-11-21
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- mini contactor
Range Of ProductTeSys SK
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
