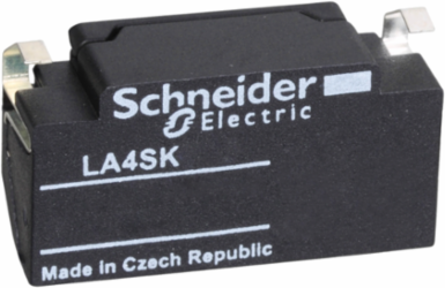

Schneider Electric LA4SKE1E TeSys SK Suppressor Module, 24-48V AC/DC, Varistor Protection, Set of 10
Schneider Electric LA4SKE1E TeSys SK Suppressor Module, 24-48V AC/DC, Varistor Protection, Set of 10
- MPN: LA4SKE1E
- PPN: SCH-LA4SKE1E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$57.17/ EA
Description
TeSys SK suppressor module, for coil protection of mini contactors LC1SK, LC1SKGC, LP1SK and mini control relays CA2SK, CA3SK. To be used with 24-48V AC or DC control circuits, it provides varistor protection limiting the transient voltage to 2 Uc max. Clipping onto the right-hand side of contactor (no tools required), it is directly connected. Sold in lots of 10 units. Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
Ambient Air Temperature For Storage-50-70 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111253EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- [Uc] Control Circuit Voltage
- 24...48 V AC || 24...48 V DC
- Mounting Location
- right hand side
Net Weight0.003 kg
Maximum Peak Voltage2 Uc
Specifications
- Product Or Component Type
- suppressor module
- Quantity Per Set
- set of 10
- Product Compatibility
- CA2SK || LC1SK06 || CA3SK || LC1SKGC || LP1SK06
RangeTeSys
Suppressor Technologyvaristor (peak limiting)
Device Short NameLA4SK
