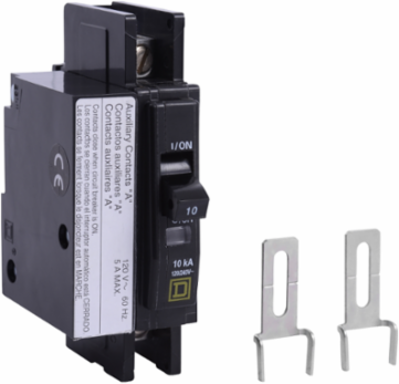

Mini Circuit Breaker 10A 1 Pole 120/240V 10kA
Square D

Square D QOU1101200 Mini Circuit Breaker 10A 1 Pole 120/240V 10kA

  • MPN: QOU1101200
  • UPC: 785901151937
  • PPN: SCH-QOU1101200

CAD

$487.85

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This mini circuit breaker from Schneider Electric is engineered to provide reliable protection in power distribution systems. With a compact design and a single pole configuration, it effectively handles current ratings of 10A at 120/240V, ensuring superior thermal and mechanical reliability. Designed for use in both residential and commercial applications, it features a breaking capacity of 10kA, making it a robust choice for safeguarding electrical circuits and enhancing safety in installations. Its QOU style allows for easy integration into various panel designs, making it a versatile solution for modern electrical systems.

Documentation & Downloads

Specifications

Additional

Circuit Breaker Type
Standard
Voltage
120/240 V AC, 120 V AC, 48 V DC
Circuit Breaker Application
HACR rated
Electrical Connection
Slotted box lugs, line side and load side
Tightening Torque
45 lbf.in (5.08 N.m)
Height
4.05 in (102.87 mm)
Product Or Component Type
Miniature circuit-breaker
Product Certifications
CSA, IEC, UL Listed
Toxic Heavy Metal Free
Yes
Halogen Content
Halogen free product
Warranty
18 months
Rated Current10 A
Current Breaking Capacity10 kA
Mounting ModeUnit mount
AWG GaugeAWG 14 to 2 aluminum/copper
Width1.5 in
Depth2.95 in (74.93 mm)
Range Of ProductQOU
RoHS ComplianceCompliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium
