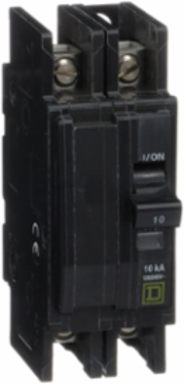

Square D QOU210 Mini Circuit Breaker 10A 2-Pole 120/240VAC 10kA
- MPN: QOU210
- UPC: 785901477457
- PPN: SCH-QOU210
CAD
$258.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 10A, 240VAC. This circuit breaker provides 10 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA.
Features
- Unlike typical plug-in breakers, the QOU210 features a unique "unit-mount" design with integrated mounting feet, allowing for direct installation on a flat surface, DIN rail, or within a custom control panel. This flexibility makes it the go-to solution for OEM manufacturers and industrial electricians who need reliable overcurrent protection in space-constrained or non-traditional enclosures.
- Engineered for maximum field adaptability, this 2-pole breaker supports "line-load" reversibility, meaning power can be fed into either the top or bottom terminals without affecting performance. This eliminates the need for complex wire routing and "looping" inside small enclosures, significantly reducing installation time and improving the overall cleanliness of your electrical layout.
- Boasting a 10,000-amp interrupting rating, the QOU210 is built to safely clear high-magnitude faults, protecting downstream equipment and sensitive electronics from catastrophic damage. This industrial-grade safety margin ensures your HVAC systems, small motors, and branch circuits remain code-compliant and resilient against electrical surges.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 10 A
- Interrupting Capacity
- 10 kA
- Circuit Breaker Application
- HACR rated
- Mounting Mode
- unit mount
- Tightening Torque
- 45 lbf.in

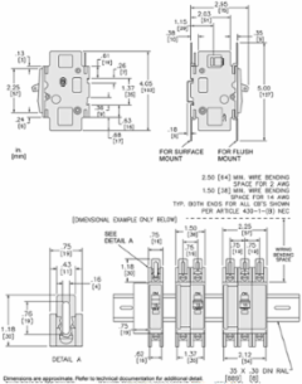

- Width
- 1.5 in
- Halogen Content Performance
- Halogen free
- Product Certifications
- CSA, IEC, UL listed
- Product Or Component Type
- miniature circuit-breaker
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Contains SVHC above threshold
Voltage120/240 V AC
Circuit Breaker Typestandard
Electrical Connectionslotted box lugs, line side and load side
Wire GaugeAWG 14 to AWG 2 aluminum/copper
Height4.45 in
Depth2.95 in
Mercury FreeYes
China Rohs RegulationOut of China RoHS scope
Sustainable Offer StatusGreen Premium product
Warranty18 months
Eu Rohs DirectiveCompliant with Exemptions
Range Of ProductQOU
