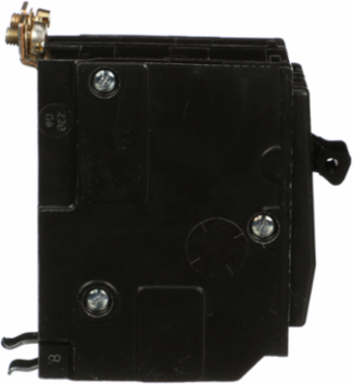

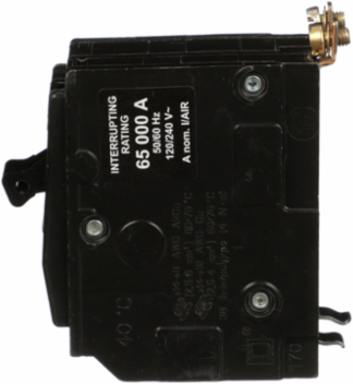

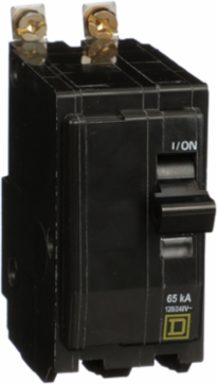

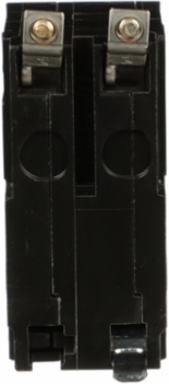

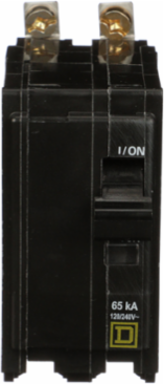

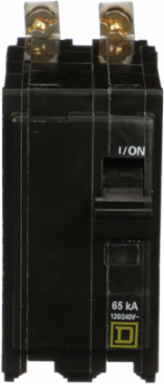

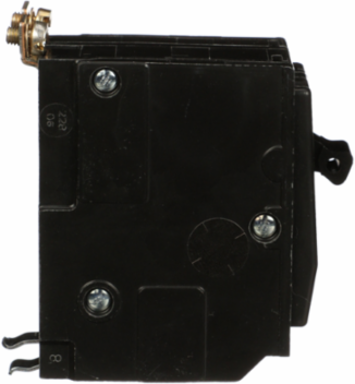

Square D QHB215 Mini Circuit Breaker 15A 2 Pole 120/240VAC 65kA Bolt-On Mount
- MPN: QHB215
- UPC: 785901341628
- PPN: SCH-QHB215
CAD
$652.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mini Circuit Breaker 15A 2 Pole 120/240VAC 65kA Bolt-On Mount
Documentation & Downloads
Specifications
Additional
- Current Rating
- 15 A
- Interrupt Rating
- 65 kA
- Mounting Type
- Bolt-on

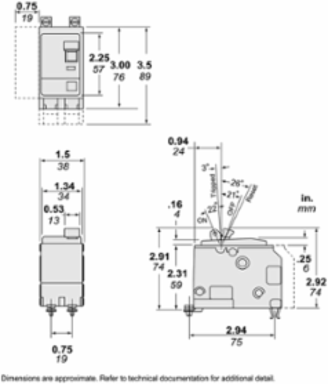

- Height
- 76 mm (3.00 in)
- Depth
- 74 mm (2.91 in)
- Tightening Torque
- 4.6 N.m (40.71 lbf.in)
- RoHS Compliance
- Compliant with Exemptions, yes
- Mercury Free
- Yes
- Circuit Breaker Type
- Standard
- Net Weight
- 0.277 kg
- Range Of Product
- QO
- Circuit Breaker Application
- HACR rated
- Sustainable Offer Status
- Green Premium product
Voltage Rating120/240 V AC
Number of Poles2
Wire SizeAWG 14 to AWG 8 copper or aluminum
Width38 mm (1.50 in)
Ambient Air Temperature40 C (104 F)
Halogen ContentHalogen free
Product CertificationsUL listed, CSA certified
Toxic Heavy Metal FreeYes
Electrical ConnectionPressure plate
Product TypeMiniature circuit-breaker
Number Of Spaces Required2
Poles Description2P
