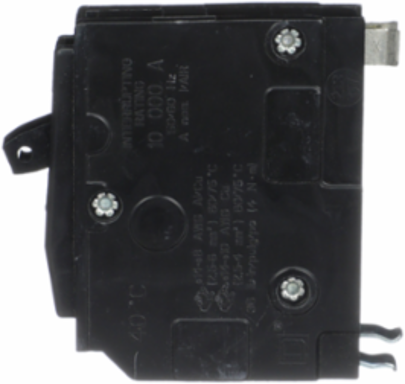

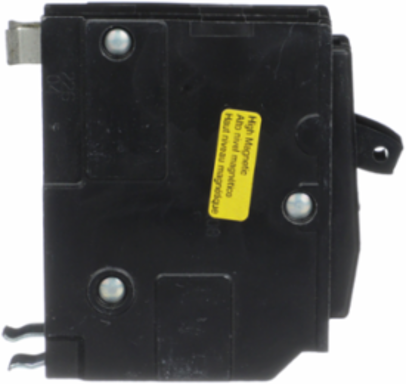

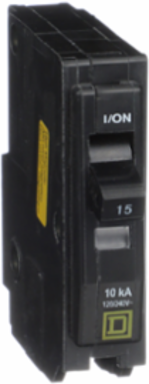

Square D QO115HM Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, high magnetic, plug in mount
Square D QO115HM Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, high magnetic, plug in mount
- MPN: QO115HM
- UPC: 785901400073
- PPN: SCH-QO115HM
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$27.66/ EA
Description
Square D™ QO™ and QOB Miniature Circuit Breakers, QO115HM, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. High magnetic trip circuit breakers for applications where high initial inrush may occur. UL listed CSA certified This 1 pole QO circuit breaker is rated at 15A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product has a high magnetic feature. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
Environment
- Product Certifications
- UL listed || CSA
Ambient Air Temperature For Operation40 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Toxic Heavy Metal FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Height
- 76 mm
- Number Of Spaces Required
- 1
- Breaking Capacity
- 10 kA 120 V AC 50/60 Hz
- Width
- 19 mm
Tightening Torque4-4 N.m
Net Weight0.191 kg
Awg GaugeAWG 14...AWG 8 copper or aluminum
Depth74 mm
Specifications
- Circuit Breaker Type
- high magnetic
- Product Or Component Type
- miniature circuit-breaker
- Mounting Mode
- plug-in
- Electrical Connection
- pressure plate
- [Ue] Rated Operational Voltage
- 120 V AC
Range Of ProductQO
Circuit Breaker ApplicationHACR and Switching Duty rated
Poles Description1P
[In] Rated Current15 A
