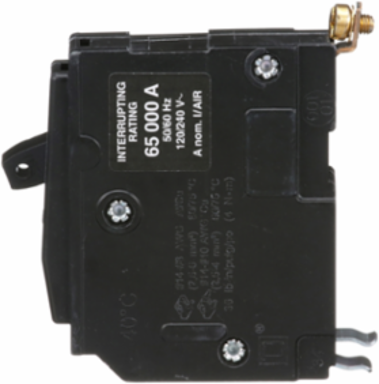

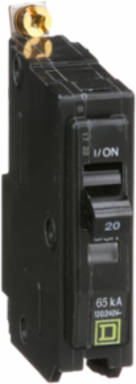

Square D QHB120 Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 65kA, bolt on mount
Square D QHB120 Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 65kA, bolt on mount
- MPN: QHB120
- UPC: 785901255383
- PPN: SCH-QHB120
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$266.46/ EA
Description
Square D™ QO™ and QOB Miniature Circuit Breakers, QHB120, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. UL listed CSA certified They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 65kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Specifications
Environment
- Product Certifications
- UL listed || CSA
Ambient Air Temperature For Operation40 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Toxic Heavy Metal FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary

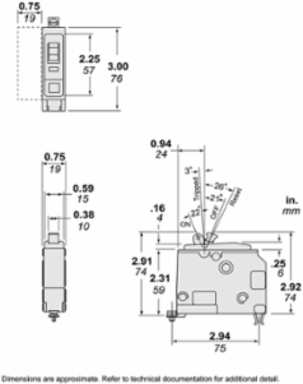

- Height
- 76 mm
- Number Of Spaces Required
- 1
- Breaking Capacity
- 65 kA 120/240 V AC 50/60 Hz || 65 kA 120 V AC 50/60 Hz
- Width
- 19 mm
Tightening Torque4.6-4.6 N.m
Net Weight0.150 kg
Awg GaugeAWG 14...AWG 8 copper or aluminum
Depth74 mm
Specifications
- Circuit Breaker Type
- standard
- Product Or Component Type
- miniature circuit-breaker
- Mounting Mode
- bolt-on
- Electrical Connection
- pressure plate
- [Ue] Rated Operational Voltage
- 120/240 V AC || 120 V AC
Range Of ProductQO
Circuit Breaker ApplicationHACR and Switching Duty rated
Poles Description1P
[In] Rated Current20 A
