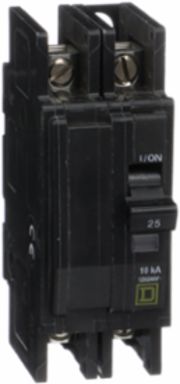

Square D QOU225 Mini Circuit Breaker 25A 2 Pole 120/240V AC 10kA
- MPN: QOU225
- UPC: 785901489146
- PPN: SCH-QOU225
CAD
$290.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO™ and QOU Miniature Circuit Breakers, QOU225, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 25 A
- Interrupt Rating
- 10 kA
- Circuit Breaker Type
- Standard
- Height
- 4.05 in
- Depth
- 2.95 in
- Mounting Mode
- Unit mount
- AWG Gauge
- AWG 14 to AWG 2 aluminum/copper
- Product Certifications
- IEC, CSA, UL listed
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- Range Of Product
- QOU
Voltage120/240 V AC, 120 V AC, 48 V DC
Poles2
Circuit Breaker ApplicationHACR rated
Width1.5 in
Tightening Torque45 lbf.in (5.08 N.m)
Electrical Connectionslotted box lugs, line side; slotted box lugs, load side
Product Or Component Typeminiature circuit-breaker
Toxic Heavy Metal FreeYes
Halogen Content PerformanceHalogen free product
Eu Rohs DirectiveCompliant with Exemptions
Sustainable Offer StatusGreen Premium product
Country of OriginMexico
