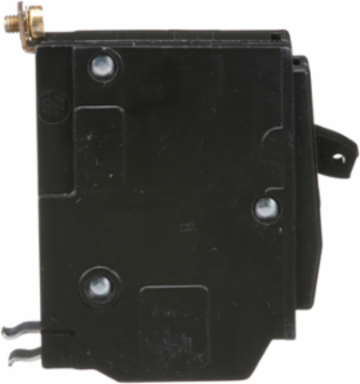

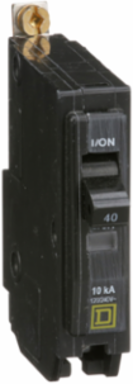

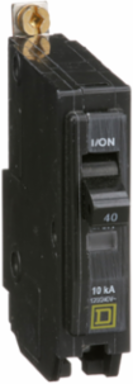

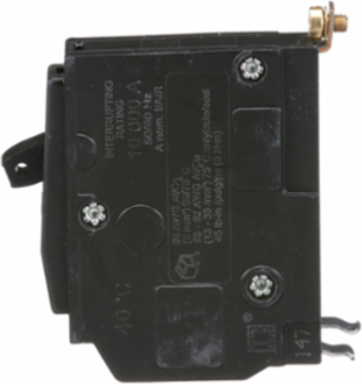

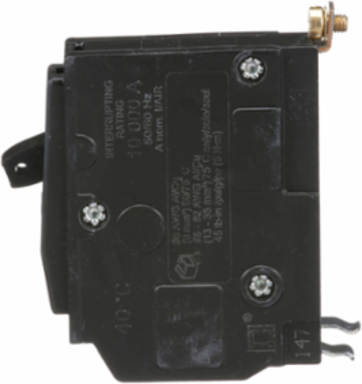

Square D QOB140 Mini Circuit Breaker 40A 1 Pole 120/240VAC Bolt-On Mount 10kA
- MPN: QOB140
- UPC: 785901416784
- PPN: SCH-QOB140
CAD
$52.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mini Circuit Breaker 40A 1 Pole 120/240VAC Bolt-On Mount 10kA
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Ireland

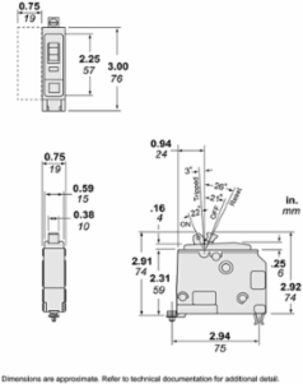

Depth74 mm
Complementary Attributes
- Line Rated Current
- 40 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.018192305, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0000352208, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 17 kg CO2 eq., 17.3042434783
- Local Publishable Date
- 2026-04-14
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2534
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Awg Gauge
- 8 AWG...2 AWG copper or aluminium
- Circuit Breaker Type
- standard
- Energy Efficiency Optimized
- False
- Number Of Poles
- 1P
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- QO
- Software Version
- EIME v5.9.1
- Tightening Torque
- 5-5 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 24.8784
- Energy Model - Installation [A5]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Width Nominal
- 19 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200040
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
[Ue] Rated Operational Voltage120/240 V AC, 120 V AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0257758514
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.8238946895
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Electrical Connectionpressure plate
Mounting Modebolt-on
Number Of Spaces Required1
Product Or Component Typeminiature circuit-breaker
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint18 kg CO2 eq.
Pep CodeENVPEP2111016EN
Pep Verification Date2021-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Height Nominal79 mm
Halogen-free StatusHalogen free product
Package Weight(Lbs)141.0 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Halogene Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 18.1721415449
- Environmental Disclosure
- ENVPEP2111016EN
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2111016EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2021-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQO
ETIM
- ETIM 8
- EC000042
ETIM 9EC000042
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
