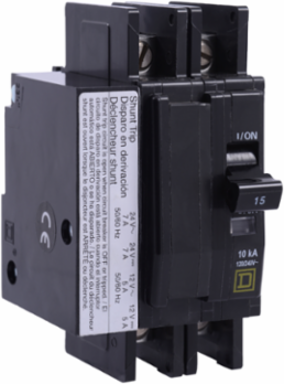

Square D QOU2501021 Mini Circuit Breaker 50A 2 Pole 120/240V AC 10kA Shunt Trip
- MPN: QOU2501021
- UPC: 785901518006
- PPN: SCH-QOU2501021
CAD
$859.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric Mini Circuit Breaker is a robust solution designed for efficient power distribution in residential and commercial settings. With a 50A capacity and a dual pole configuration, it is suitable for use in both 120V and 240V AC applications. This breaker features a shunt trip mechanism that enhances safety by allowing the breaker to be activated remotely. With a fault current rating of 10kA, it provides reliable thermal and mechanical protection, ensuring peace of mind in electrical systems. Built to streamline circuit management, this product is an essential component for modern electrical panels.
Documentation & Downloads
Specifications
Additional
- Amperage
- 50 A
- Circuit Breaker Type
- standard
- Mounting Mode
- unit mount
- Size: Height
- 4.05 in (102.87 mm)
- Size: Depth
- 2.95 in (74.93 mm)
- Poles
- 2
- Trip Type
- Shunt Trip
- Product Or Component Type
- miniature circuit-breaker
- RoHS Compliance
- Yes, compliant with exemptions
- REACH Regulation
- Contains SVHC above threshold
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Range Of Product
- QOU
Voltage120/240 V AC, 120 V AC, 48 V DC
Circuit Breaker ApplicationHACR rated
Electrical Connectionslotted box lugs, line side and load side
Size: Width2.25 in (57.15 mm)
Tightening Torque45 lbf.in (5.08 N.m) AWG 14...AWG 2 aluminum/copper
Fault Current Rating10 kA
Materialaluminum/copper
Product CertificationsUL listed, CSA, IEC
China RoHSOut of scope
Toxic Heavy Metal FreeYes
Halogen Content PerformanceHalogen free product
Warranty18 months
