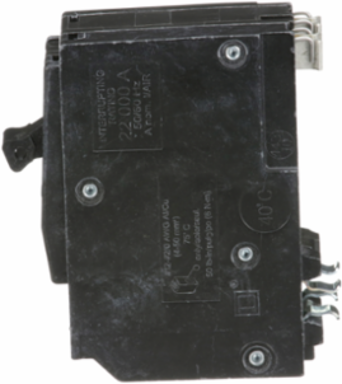

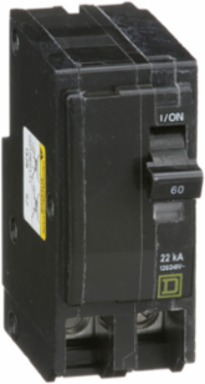

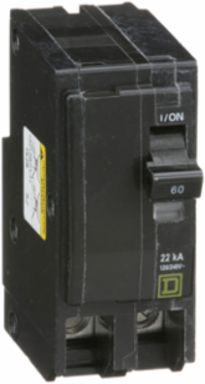

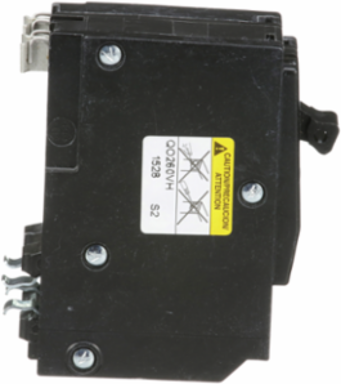

Square D QO260VH Miniature Circuit Breaker 60A 2-Pole 120/240VAC 22kA Plug-in Mount
- MPN: QO260VH
- UPC: 785901054979
- PPN: SCH-QO260VH
CAD
$146.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 60A at 120/240VAC. This unit provides 22kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Features

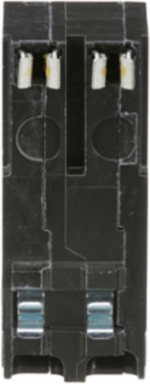

- This premium 2-pole miniature circuit breaker features standard Square D plug-in mounting designed exclusively for use in QO load centers, NQ/NQOD panelboards, and Speed-D switchboard distribution panels. Occupying exactly two panel spaces, its compact 1.5-inch footprint slides seamlessly onto the bus bar, providing a secure electrical connection without requiring time-consuming modifications.
- Engineered for high-fault duty, the QO260VH delivers an elevated 22 kA interrupting rating (AIC) at 120/240V AC, matching the demanding safety specifications required by modern code updates. This high interrupting capacity protects your downstream equipment and infrastructure during severe short circuits, preventing panel damage that standard 10 kA breakers cannot withstand.
- This thermal-magnetic circuit breaker with a current rating of 60 A is fully HACR rated, making it code-compliant for heavy-duty heating, air conditioning, and refrigeration applications, as well as sub-panel feeds. It provides robust overcurrent protection that eliminates nuisance tripping during high-amperage equipment startup spikes, keeping your essential systems running smoothly.
- Equipped with the industry-exclusive VisiTrip indicator, a highly visible, bright window clearly signals when the breaker has tripped and cut off power. This instantly eliminates troubleshooting guesswork in dark or crowded utility rooms, minimizing downtime by letting you locate and resolve the fault immediately.
- Built with versatile, heavy-duty box lug terminals, this breaker accepts both copper and aluminum wire within an 8 AWG to 2 AWG range. The mechanical lugs ensure a robust clamp at a tightening torque of 49.56 lbf-in, preventing loose connections, reducing resistance, and optimizing current flow across diverse installation requirements.
- Manufactured by Schneider Electric, the QO260VH is fully UL listed and CSA certified under rigorous electrical safety protocols. This guarantees your commercial or residential project passes municipal electrical inspections without delay while ensuring reliable, long-term performance under maximum continuous load conditions.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 60 A
- Breaking Capacity
- 22 kA
- Circuit Breaker Type
- standard
- Wire Size
- AWG 8 to AWG 2 copper or aluminum

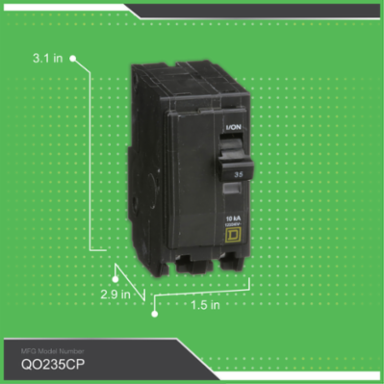

- Height
- 79 mm (3.11 in)
- Depth
- 74 mm (2.91 in)
- Ambient Temperature Rating
- 40 °C (104 °F)
- Material
- Halogen free product, Mercury Free
- Electrical Connection
- box lugs
- Circuit Breaker Application
- HACR rated
Voltage120/240 V AC
Number of Poles2
Mounting Typeplug-in
Tightening Torque5.6 N.m
Width38 mm (1.50 in)
Net Weight0.318 kg (0.70 lb)
Product CertificationsUL Listed, CSA Certified, RoHS Compliant
Range of ProductQO
Number Of Spaces Required2
