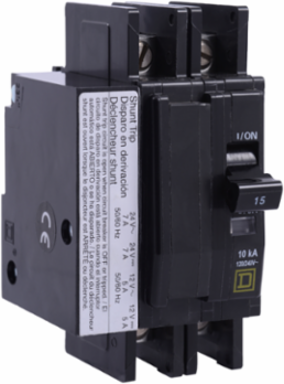

Square D QOU2601021 Mini Circuit Breaker 60A 2 Pole 120/240V AC 10kA Shunt Trip
- MPN: QOU2601021
- UPC: 785901518501
- PPN: SCH-QOU2601021
CAD
$601.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

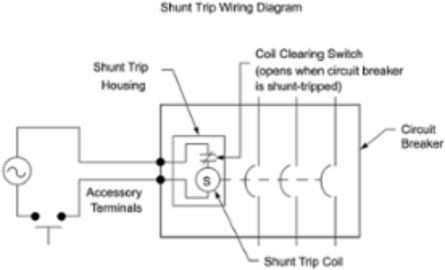

Engineered for optimal performance in power distribution systems, this mini circuit breaker from Schneider Electric is designed to handle a current rating of 60A across two poles, accommodating 120/240V AC applications. With a robust interrupting capacity of 10kA, it ensures excellent protection against overcurrents and electrical faults, making it a reliable choice for various industrial and commercial settings. This QOU style circuit breaker incorporates a shunt trip feature, enhancing operational safety by allowing remote tripping when necessary, adding another layer of versatility and performance to your electrical system.
Documentation & Downloads
Specifications
Additional
- Amperage
- 60 A
- Interrupting Capacity
- 10 kA
- Circuit Breaker Type
- Standard
- Tightening Torque
- 45 lbf.in (5.08 N.m)
- Height
- 4.05 in
- Electrical Connection
- Slotted box lugs, line side and load side
- Wire Size Range
- AWG 14 to AWG 2 aluminum/copper
- Product Certifications
- CSA, IEC, UL listed
- China RoHS
- Out of scope
- Halogen Content Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Type
- Miniature circuit-breaker
- Country of Origin
- Mexico
Voltage120/240 V AC, 120 V AC, 48 V DC
Poles2
Circuit Breaker ApplicationHACR rated
Width2.25 in
Depth2.95 in
Mounting ModeUnit mount
MaterialN/A
RoHS ComplianceCompliant with Exemptions
REACHContains SVHC above threshold
Mercury FreeYes
Range of ProductQOU
Warranty18 months
