Square D QOB120CAFI QO Mini Circuit Breaker 20A 1 Pole 120/240VAC Bolt-On Mount

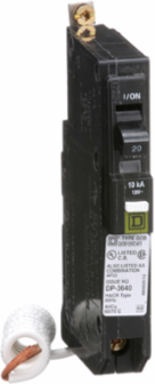

QO Mini Circuit Breaker 20A 1 Pole 120/240VAC Bolt-On Mount - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/a1a9d29f7c294f2f1fa32f94d277093db603ca26-medium.png

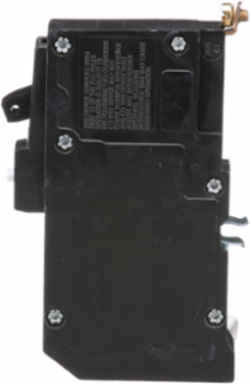

QO Mini Circuit Breaker 20A 1 Pole 120/240VAC Bolt-On Mount - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/731c9065b8676258dff9b2e23ffb04367a5702be-medium.png

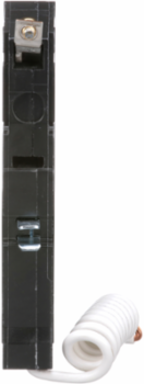

QO Mini Circuit Breaker 20A 1 Pole 120/240VAC Bolt-On Mount - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/2996c3aa6c1fb1ee157b778a21ac0e7d9c0e968f-medium.png

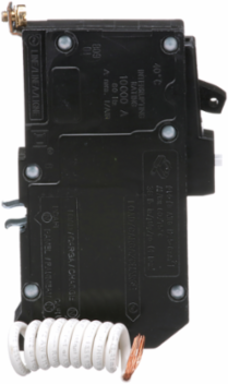

QO Mini Circuit Breaker 20A 1 Pole 120/240VAC Bolt-On Mount - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/d18a6a9bf8249458f4830e3616ddc40a0d548c3f-medium.png

QO Mini Circuit Breaker 20A 1 Pole 120/240VAC Bolt-On Mount

Square D QOB120CAFI QO Mini Circuit Breaker 20A 1 Pole 120/240VAC Bolt-On Mount

MPN: QOB120CAFI
UPC: 785901530602
PPN: SCH-QOB120CAFI

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$476.92/ EA

Qty:

Loading add to cart quantity...

Description

Square D™ QO™ and QOB Miniature Circuit Breakers, QOB120CAFI, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Equipped with Combination ground and Arc-fault interrupter (Pigtail Neutral). UL listed CSA certified This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a combination arc fault with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Rated Current: 20 A

Rated Operational Voltage: 120/240 V AC

Mounting Type: bolt-on

Connection Type: pigtail neutral

Tightening Torque: 4-4 N.m

Width: 19 mm (0.75 in)

Net Weight: 0.299 kg (0.66 lb)

Ambient Temperature Rating: 40 °C (104 °F)

Warranty: 18 months

Product Or Component Type: miniature circuit-breaker

Circuit Breaker Application: HACR rated

Environmental Disclosure: ENVPEP2212005

China Rohs Regulation: Out of China RoHS scope

Reach Regulation: Contains SVHC above threshold

Poles1P

Breaking Capacity10 kA 120/240 V AC 50/60 Hz

Circuit Breaker Typecombination ARC-fault

Wire SizeAWG 14...AWG 8 copper, AWG 12...AWG 8 aluminum

Height121 mm (4.76 in)

Depth74 mm (2.91 in)

CertificationsUL listed, CSA certified

Mercury FreeYes

Range Of ProductQO

Electrical Connectionpressure plate

Sustainable Offer StatusGreen Premium product

Circularity ProfileENVEOLI2212005

Eu Rohs DirectiveCompliant with Exemptions
