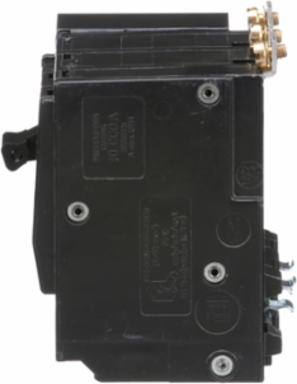

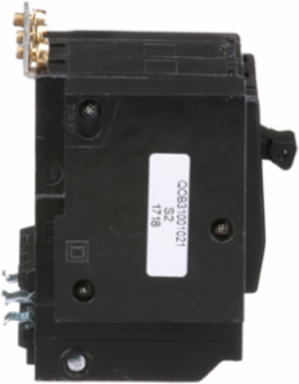

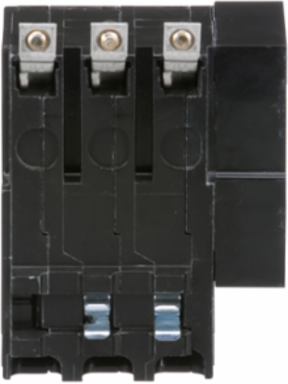

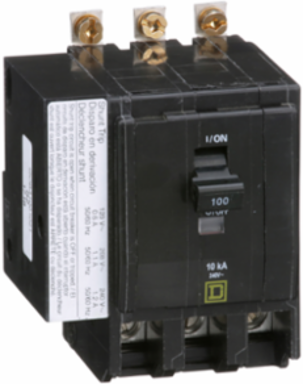

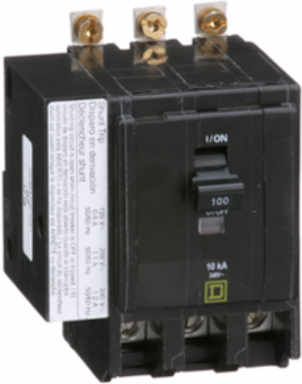

Square D QOB31001021 Mini circuit breaker, QO, 100A, 3 pole, 120/240VAC, 10kA, bolt on mount, AC shunt
Square D QOB31001021 Mini circuit breaker, QO, 100A, 3 pole, 120/240VAC, 10kA, bolt on mount, AC shunt
- MPN: QOB31001021
- UPC: 785901031024
- PPN: SCH-QOB31001021
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1109.77/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 100A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an AC shunt trip. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
Environment
- Product Certifications
- UL listed || CSA
Ambient Air Temperature For Operation40 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Halogen Content PerformanceHalogen free product
Complementary
- Height
- 89 mm
- Number Of Spaces Required
- 4
- Breaking Capacity
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Width
- 76 mm
Tightening Torque5.6-5.6 N.m
Net Weight0.612 kg
Awg GaugeAWG 4...AWG 2/0 copper or aluminum
Depth74 mm
Specifications
- Circuit Breaker Type
- standard
- Accessory / Separate Part Type
- shunt trip 120/208/240 V AC
- Circuit Breaker Application
- HACR rated
- Poles Description
- 3P
- [In] Rated Current
- 100 A
Range Of ProductQO
Product Or Component Typeminiature circuit-breaker
Mounting Modebolt-on
Electrical Connectionbox lugs
[Ue] Rated Operational Voltage120/240 V AC || 240 V AC || 120 V AC
