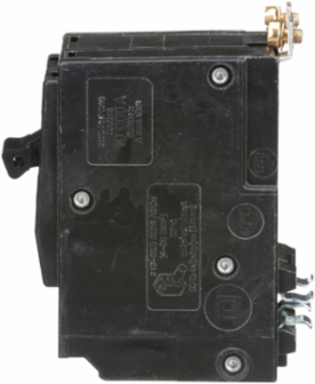

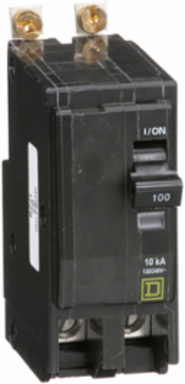

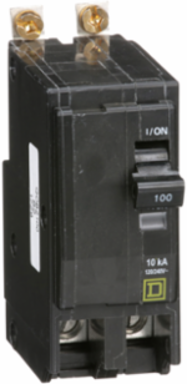

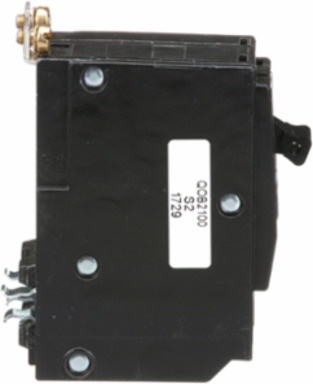

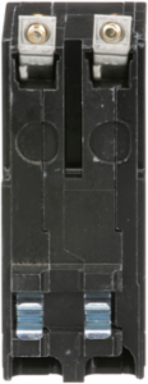

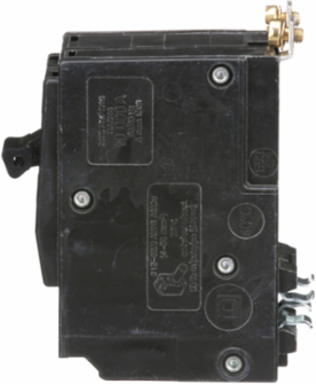

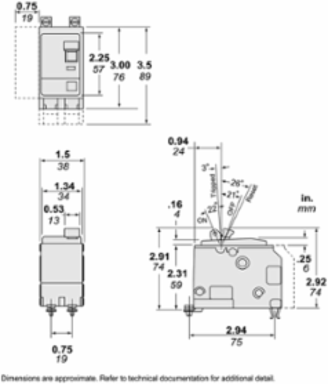

Square D QOB2100 Mini Circuit Breaker 100A 2-Pole 120/240V AC 10kA Bolt-On Mount
- MPN: QOB2100
- UPC: 785901019688
- PPN: SCH-QOB2100
CAD
$238.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mini Circuit Breaker 100A 2-Pole 120/240V AC 10kA Bolt-On Mount
Features
- The QOB2100 features a secure bolt-on connection designed specifically for NQ and NQOD panelboards, providing a permanent, vibration-proof attachment to the bus bar. This mechanical fastening eliminates the risk of "arcing at the bus," a common failure point in high-vibration industrial environments, ensuring your critical circuits remain energized without intermittent power flickers.
- Providing a robust 100A capacity at 120/240V AC, this dual-pole breaker is engineered to protect high-wattage equipment like large air handlers, water heaters, and industrial motors. By monitoring both "hot" legs simultaneously, it provides a common trip mechanism that ensures if one pole faults, both are disconnected, preventing dangerous "single-phasing" conditions that can burn out expensive three-phase motors.
- Featuring Schneider Electric s exclusive Visi-TripTM technology, a highly visible red mechanical indicator snaps into view the instant the breaker trips. This allows facility electricians to identify the faulted circuit across a crowded electrical room at a glance, significantly reducing troubleshooting downtime and getting your operations back online faster.
- As part of the industry-leading QO family, the QOB2100 is the gold standard for commercial distribution, designed for seamless integration into NQOD and NQ square-bus interiors. Its compact 1.5-inch width allows for high-density circuit placement, giving you the power of a 100A feed without sacrificing excessive rail space in your enclosure.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth74 mm
Complementary Attributes
- Rated Current
- 100 A
Line Rated Current100 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Certificate Agency
- UL Listed, CSA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.043893, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.000084978, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 17 kg CO2 eq., 17.3042434783
- Local Publishable Date
- 2026-04-14
- Stocking Flag
- N
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2534
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Commercial
- Awg Gauge
- 4 AWG...2/0 AWG copper or aluminium
- Circuit Breaker Type
- standard
- Energy Efficiency Optimized
- False
- Number Of Poles
- 2P
- Poles Description
- 2P
- Product Or Component Type
- miniature circuit-breaker
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 19 kg CO2 eq.
- Pep Code
- ENVPEP2111016EN
- Pep Verification Date
- 2021-11-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
- Height Nominal
- 89 mm
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 331.122 g
- Warranty (In Months)
- 18
- Air Pollution (M3) End Of Life [C1-c4]
- 3.5406
- Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 11.9352
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 51.141
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
- 5.4405
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 45.702
- Water Pollution (M3) Distribution [A4]
- 7.218
- Customs Code
- 8536200040
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
[Ue] Rated Operational Voltage120/240 V AC, 120 V AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.06219
Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.98783
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Electrical Connectionpressure plate
Mounting Modebolt-on
Number Of Spaces Required2
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Software VersionEIME v5.9.1
Tightening Torque5.6-5.6 N.m
Breaking Capacity 510 kA
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh24.8784
Energy Model - Installation [A5]Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Energy Model - End Of Life [C1-c4]Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX
Width Nominal38 mm
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Manufacturing [A1-a3]454.11
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]33.351
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]1.5288
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]52.875
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]5.4405
Water Pollution (M3) Manufacturing [A1-a3]163.881
Water Pollution (M3) End Of Life [C1-c4]4.4721
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Halogene Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 19.3982414563
- Environmental Disclosure
- ENVPEP2111016EN
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2111016EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2021-11-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQO
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
