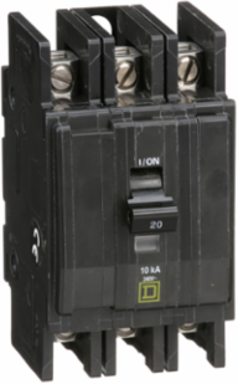

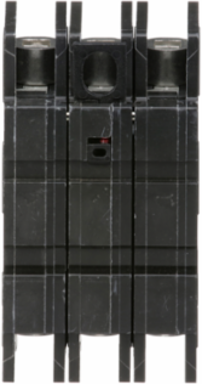

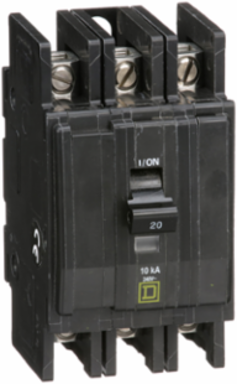

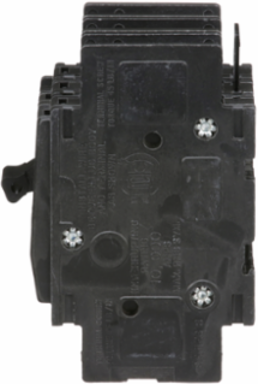

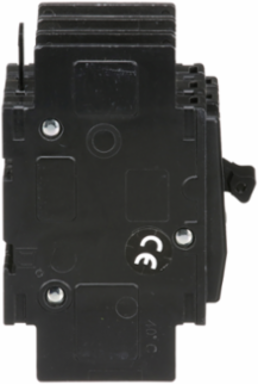

Square D QOU320 Mini Circuit Breaker, 20A, 3 Pole, 240VAC, 10kA, 2.25 Inch Width
- MPN: QOU320
- UPC: 785901418894
- PPN: SCH-QOU320
CAD
$925.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO™ and QOU Miniature Circuit Breakers, QOU320, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
Documentation & Downloads
Specifications
Additional
- Current
- 20 A
- Interrupting Capacity
- 10 kA
- Type
- Miniature circuit-breaker
- Circuit Breaker Type
- Standard
- Electrical Connection
- Slotted box lugs, line side and load side
- AWG Gauge
- AWG 14 to AWG 2 aluminium/copper
- Width
- 2.25 in
- Depth
- 2.95 in
- Compliance
- REACH, EU RoHS compliant with exemptions, China RoHS compliant
- Mercury Free
- Yes
- Country of Origin
- Mexico
Voltage120/240 V AC, 48 V DC
Poles3
RangeQOU
Circuit Breaker ApplicationHACR rated
Mounting ModeUnit mount
Tightening Torque45 lbf.in (5.08 N.m)
Height4.05 in
Product CertificationsCSA, UL Listed, IEC
Toxic Heavy Metal FreeYes
Halogen ContentHalogen free product
Warranty18 months
