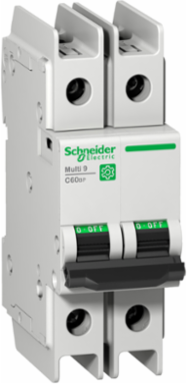

Schneider Electric M9F42210 Miniature Circuit Breaker 2P 10A C Curve 10kA IP20
- MPN: M9F42210
- PPN: SCH-M9F42210
CAD
$100.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 10A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Features
- As part of the globally recognized Multi9 range, this 2-pole miniature circuit breaker is specifically engineered for original equipment manufacturers (OEMs) and industrial control panels. It carries multiple international certifications, including UL 489, CSA, and IEC 60947-2, allowing you to standardize on a single component for machines exported to any market worldwide without worrying about local regulatory rejection.
- Featuring a "C" trip curve, this breaker is designed to handle moderate magnetic inrush currents typical of small motors, solenoids, and control transformers. It provides a precise 10-amp thermal-magnetic trip threshold that prevents nuisance tripping during equipment startup while offering instantaneous protection against short circuits, ensuring your sensitive automated systems stay online and protected.
- Rated for up to 480Y/277V AC, this breaker is optimized for the demanding power requirements of modern industrial and commercial branch circuit protection. The high-performance design supports a 10kA interrupting rating (AIR), providing a critical safety buffer that prevents catastrophic equipment damage during high-fault events in complex power distribution networks.
- Equipped with heavy-duty tunnel terminals (top and bottom), this breaker ensures a high-torque, gas-tight connection for your wiring. This superior clamping design prevents wire loosening caused by thermal expansion or machine vibration—a leading cause of electrical fires—and simplifies the installation process for panel builders working with multiple wire gauges.
- Designed with a slim, modular profile that snaps directly onto standard 35mm DIN rails, this 2P breaker maximizes valuable real estate inside high-density control cabinets. The ergonomic toggle switch provides a clear "ON/OFF" status, while the robust mechanical life of 20,000 cycles ensures long-term reliability in critical infrastructure where downtime is not an option.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 10 A 25 °C EN/IEC 60947-2
- Rated Service Breaking Capacity
- 4.5 kA 75% at 440 V AC, 7.5 kA 75% at 415 V AC, 15 kA 75% at 240 V AC EN/IEC 60947-2
- Poles
- 2P
- Rated Insulation Voltage
- 500 V AC EN/IEC 60947-2
- Magnetic Tripping Limit
- 8.5 x In ±20% AC, 12 x In ±20% DC
- Mechanical Durability
- 20000 cycles
- Width
- 36 mm (4 pitches of 9 mm)
- Depth
- 72 mm
- Connection Type
- Tunnel type terminal, top or bottom, AWG 18-8 (1-25 mm² rigid, 1-16 mm² flexible with ferrule)
- Pollution Degree
- 3 EN/IEC 60947-2
- Operating Temperature Range
- -30 to 70 °C
- Standards
- EN/IEC 60947-2, GB 14048.2, UL 489, CSA C22.2 No 5
- Environmental Compliance
- RoHS Compliant with Exemptions, Halogen free product, EU RoHS, China RoHS info provided
- Suitability For Isolation
- Yes EN/IEC 60947-2
- Device Short Name
- C60BP
- Control Type
- Toggle
- Mercury Free
- Yes
Breaking Capacity6 kA Icu 440 V AC, 10 kA Icu 415 V AC, 20 kA Icu 240 V AC EN/IEC 60947-2
Tripping CurveC
Rated Operational Voltage240 V AC 50/60 Hz, 415 V AC 50/60 Hz, 440 V AC 50/60 Hz
Rated Impulse Withstand Voltage6 kV EN/IEC 60947-2
Electrical Durability10000 cycles
MountingDIN rail clip-on
Height103 mm
Wire Stripping Length14 mm for top or bottom connection
Provision for PadlockingPadlockable
IP RatingIP20 conforming to IEC 60529 (terminals)
Storage Temperature Range-40 to 80 °C
Product CertificationsIEC, CCC, CSA, UL
ColorGrey (RAL7035)
Contact Position IndicatorYes
Product TypeMiniature circuit-breaker
Operating Altitude0 to 2000 m
Tropicalisation2 IEC 60068-1
