Multi9 C60 Miniature Circuit Breaker, 2P, 6A, D Curve, 10kA
Schneider Electric

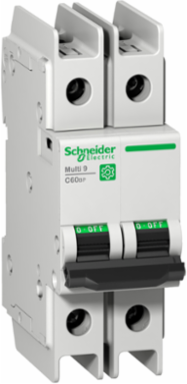

Schneider Electric M9F43206 Multi9 C60 Miniature Circuit Breaker, 2P, 6A, D Curve, 10kA

  • MPN: M9F43206
  • PPN: SCH-M9F43206
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $108.08

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 6A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, United States
    Depth72 mm

    Physical Attributes

    Color
    Gray
    Wire Stripping Length14 mm for top or bottom connection

    Complementary Attributes

    Line Rated Current
    6 A 25 °C EN/IEC 60947-2

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Network Type
    DC, AC
    Certificate Agency
    IEC, CCC, CSA, UL
    [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz, 415 V AC 50/60 Hz, 440 V AC 50/60 Hz
    Carbon Footprint Of The Distribution Phase [A4]
    0.03488072263147775, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.011318007610419019
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    13 kg CO2 eq., 12.925846153846154
    Local Publishable Date
    2026-07-13
    Stocking Flag
    Y
    Device Type
    LV equipment - Low voltage circuit breaker
    Traceability
    No
    Average Life Duration
    15 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Market Segmentation Id
    COMMERCIAL
    Product Kit Identifier
    N
    Contact Position Indicator
    yes
    Curve Code
    D
    Device Short Name
    C60BP
    Energy Efficiency Optimized
    False
    Magnetic Tripping Limit
    12 x In +/- 20 % AC17 x In +/- 20 % DC
    Mounting Mode
    clip-on
    Number Of Poles
    2P
    Power Losses Per Pole
    1.2 W
    Product Name
    Multi9 C60
    Provision For Padlocking
    padlockable
    Range Of Product
    Multi9
    Software Version
    v5.9.4
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    15 kg CO2 eq.
    Trip Unit Technology
    thermal-magnetic
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP1304004EN
    Pep Verification Date
    2023-03-02
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal
    103 mm
    [Ui] Rated Insulation Voltage
    500 V AC EN/IEC 60947-2
    Earth-leakage Protection
    without
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    No
    Warranty (In Months)
    18
    Customs Code
    8536200040
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Poles Description2P
    [Ics] Rated Service Breaking Capacity7.5 kA 75 % GB/T 14048.2 - 415 V AC, 15 kA 75 % GB/T 14048.2 - 240 V AC, 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC7.5 kA 75 % EN/IEC 60947-2 - 415 V AC15 kA 75 % EN/IEC 60947-2 - 240 V AC, 4.5 kA 75 % GB/T 14048.2 - 440 V AC
    Connections - Terminalstunnel type terminal top or bottom) 1-25 mm² 18 AWG...8 AWG) - rigid, with ferrule, tunnel type terminal top or bottom) 1-16 mm² 18 AWG...8 AWG) - flexible
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6999039724046263, 0.7 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.6988958697266159
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionPPIBS
    Service Catalog ItemFinished good
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1645
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationCommercial
    Connection Pitch18 mm between phases
    Control Typetoggle
    Device Applicationdistribution
    Electrical Durability10000 cycles
    Local SignallingON/OFF indication
    Mechanical Durability20000 cycles
    Mounting SupportDIN rail
    Number Of Protected Poles2
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeminiature circuit-breaker
    RangeMulti9
    ReturnabilityYes
    Suitability For Isolationyes EN/IEC 60947-2
    Tightening Torque2.5-2.5 N.m top or bottom
    Total Power Losses2.4 W
    Tropicalisation2 IEC 60068-1
    Rated Current 36 A
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C
    Functional-unit Unitunité (unit)
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; BG
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential In %56
    Width Nominal36 mm
    [Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 60947-2
    Halogen-free StatusHalogen free plastic parts product
    Package Weight(Lbs)240.000 g
    Take-backNo
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]139.2
    Tsca RegulationDoes not contain Section 6H Chemical

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-80 °C, -40-80 °C
    Halogene Performance
    Halogen free plastic parts product
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Carbon Footprint
    15.445993256963133
    Ambient Air Temperature For Operation
    -30-70 °C-30-70 °C
    Eu Rohs Directive
    Compliant
    Ip Degree Of Protection
    IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1304004EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Silicon FreeNo
    9 Mm Pitches4
    Environmental DisclosureENVPEP1304004EN
    Halogen Content PerformanceHalogen free plastic parts product
    Operating Altitude0...6561.68 ft (0...2000 m)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % 55-55 °C
    Pep Verification Date2023-03-02
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    miniature circuit-breaker
    Range Of ProductMulti9

    ETIM

    ETIM 8
    EC000042
    ETIM 9EC000042
