Multi9 Miniature Circuit Breaker, 3P, 15A, C Curve, 10kA
Schneider Electric

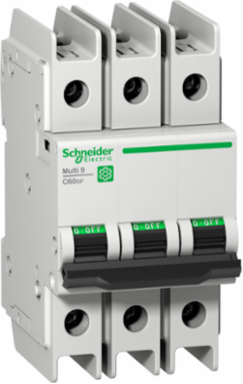

Schneider Electric M9F42315 Multi9 Miniature Circuit Breaker, 3P, 15A, C Curve, 10kA

  • MPN: M9F42315
  • PPN: SCH-M9F42315
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $145.37

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 15A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.

    Features

    • Engineered to meet UL 489, CSA C22.2 No 5, and IEC/EN 60947-2 standards simultaneously, this Multi9 miniature circuit breaker (MCB) eliminates the need to design separate electrical architectures for different regions. This universal compliance drastically reduces engineering overhead for original equipment manufacturers (OEMs) and panel builders who export control panels globally.
    • Classified as a true UL 489 branch circuit breaker, the C60BP series is fully certified to safeguard sensitive electrical loads, power supplies, and control transformers without requiring secondary upstream protection. This robust rating streamlines your design footprints, saving critical panel space and reducing overall component costs compared to using bulkier molded-case circuit breakers (MCCBs).
    • Featuring a C-curve thermal-magnetic profile with a magnetic tripping limit of 8.5 times I_n (±20%), this 15-Amp breaker is ideal for handling the moderate inductive inrush currents found in process control lines, computers, and medical equipment. It allows your machinery to cycle on naturally while maintaining a strict defense against short circuits and prolonged thermal overloads.
    • Boasting an AIC rating of 10 kA at 480Y/277V AC under UL/CSA, and up to 20 kA at 240V AC, this miniature breaker provides heavy-duty fault management in a space-saving chassis. This high interrupting threshold safeguards delicate solid-state components from catastrophic arc damage during severe line faults, maintaining superior system uptime.
    • Designed with a standard 54mm-wide clip-on mounting layout (6 pitches of 9mm), this breaker snaps directly onto standard symmetrical 35mm DIN rails. Combined with dual tunnel-type terminals accommodating 18 to 8 AWG rigid or flexible wiring, it accelerates field wiring workflows and allows for effortless drop-in component replacements during scheduled maintenance windows.

    Documentation & Downloads

    Specifications

    Additional

    Amperage
    15 A 25 C EN/IEC 60947-2
    Rated Service Breaking Capacity (Ics)
    4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC
    Rated Operational Voltage
    240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
    Rated Impulse Withstand Voltage
    6 kV EN/IEC 60947-2
    Electrical Durability
    10000 cycles
    Trip Unit Technology
    thermal-magnetic
    Suitability For Isolation
    yes EN/IEC 60947-2
    Height
    103 mm
    Wire Stripping Length
    14 mm for top or bottom connection
    Pollution Degree
    3 EN/IEC 60947-2
    Provision For Padlocking
    padlockable
    Local Signalling
    ON/OFF indication
    Tropicalisation
    2 IEC 60068-1
    Rohs Exemption Information
    Yes
    Breaking Capacity6 kA Icu 440 V AC || 10 kA Icu 415 V AC || 20 kA Icu 240 V AC EN/IEC 60947-2
    Poles3P
    Rated Insulation Voltage500 V AC EN/IEC 60947-2
    Mechanical Durability20000 cycles
    Curve TypeC
    Magnetic Tripping Limit8.5 x In B1 20 % AC
    Width54 mm (6 x 9 mm pitches)
    Depth72 mm
    Mounting SupportDIN rail
    Degree of ProtectionIP20 conforming to IEC 60529
    Contact Position Indicatoryes
    Colorgrey RAL7035
    StandardsEN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
